Version 4 Order Online: www.nbe-inc.com/accessories

Online Ordering:

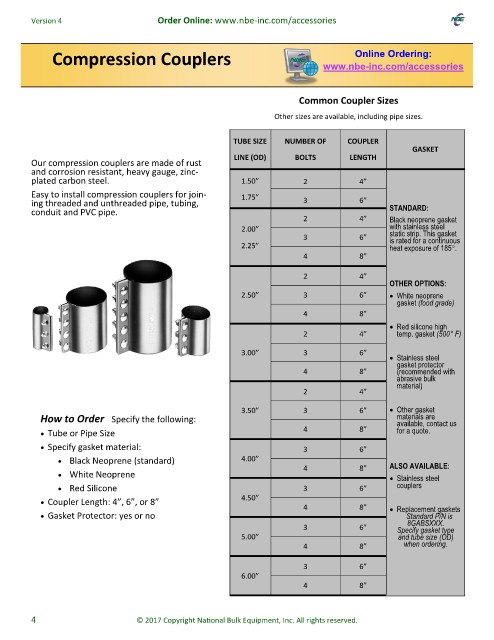

Compression Couplers www.nbe-inc.com/accessories

Common Coupler Sizes

Other sizes are available, including pipe sizes.

TUBE SIZE NUMBER OF COUPLER
GASKET
LINE (OD) BOLTS LENGTH
Our compression couplers are made of rust
and corrosion resistant, heavy gauge, zinc-
plated carbon steel. 1.50” 2 4”
Easy to install compression couplers for join- 1.75”
ing threaded and unthreaded pipe, tubing, 3 6”
conduit and PVC pipe. STANDARD:
2 4” Black neoprene gasket
2.00” with stainless steel
3 6” static strip. This gasket
is rated for a continuous
2.25” heat exposure of 185.
4 8”

2 4”
OTHER OPTIONS:
2.50” 3 6”  White neoprene
gasket (food grade)
4 8”
 Red silicone high
2 4” temp. gasket (500° F)

3.00” 3 6”
 Stainless steel
gasket protector
4 8” (recommended with
abrasive bulk
material)
2 4”

 Other gasket
3.50” 3 6”
How to Order Specify the following: materials are
available, contact us
4 8” for a quote.
 Tube or Pipe Size

 Specify gasket material: 3 6”
 Black Neoprene (standard) 4.00”
4 8” ALSO AVAILABLE:
 White Neoprene  Stainless steel
 Red Silicone 3 6” couplers
4.50”
 Coupler Length: 4”, 6”, or 8”
4 8”  Replacement gaskets
 Gasket Protector: yes or no Standard P/N is
8GABSXXX.
3 6” Specify gasket type
5.00” and tube size (OD)
4 8” when ordering.

3 6”
6.00”
4 8”
