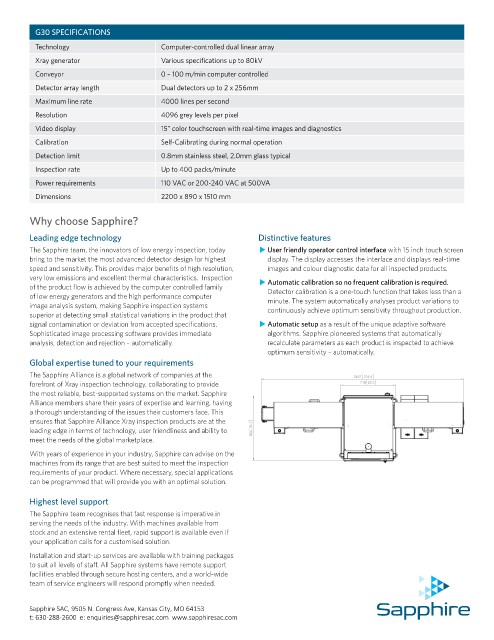

G30 SPECIFICATIONS

Technology Computer-controlled dual linear array
Xray generator Various specifications up to 80kV
Conveyor 0 – 100 m/min computer controlled
Detector array length Dual detectors up to 2 x 256mm
Maximum line rate 4000 lines per second
Resolution 4096 grey levels per pixel
Video display 15” color touchscreen with real-time images and diagnostics
Calibration Self-Calibrating during normal operation
Detection limit 0.8mm stainless steel, 2.0mm glass typical

Inspection rate Up to 400 packs/minute
Power requirements 110 VAC or 200-240 VAC at 500VA
Dimensions 2200 x 890 x 1510 mm

Why choose Sapphire?

Leading edge technology Distinctive features
The Sapphire team, the innovators of low energy inspection, today X XUser friendly operator control interface with 15 inch touch screen
bring to the market the most advanced detector design for highest display. The display accesses the interface and displays real-time
speed and sensitivity. This provides major benefits of high resolution, images and colour diagnostic data for all inspected products.
very low emissions and excellent thermal characteristics. Inspection X Xutomatic calibration so no frequent calibration is required.
A
of the product flow is achieved by the computer controlled family
of low energy generators and the high performance computer Detector calibration is a one-touch function that takes less than a
minute. The system automatically analyses product variations to
image analysis system, making Sapphire inspection systems
superior at detecting small statistical variations in the product that continuously achieve optimum sensitivity throughout production.
signal contamination or deviation from accepted specifications. X Xutomatic setup as a result of the unique adaptive software
A
Sophisticated image processing software provides immediate algorithms. Sapphire pioneered systems that automatically
analysis, detection and rejection – automatically. recalculate parameters as each product is inspected to achieve
optimum sensitivity – automatically.
Global expertise tuned to your requirements
The Sapphire Alliance is a global network of companies at the 2651 104.4
forefront of Xray inspection technology, collaborating to provide 718 28.3
the most reliable, best-supported systems on the market. Sapphire
Alliance members share their years of expertise and learning, having
a thorough understanding of the issues their customers face. This
ensures that Sapphire Alliance Xray inspection products are at the 33.7
leading edge in terms of technology, user friendliness and ability to 856
meet the needs of the global marketplace.

With years of experience in your industry, Sapphire can advise on the
machines from its range that are best suited to meet the inspection
requirements of your product. Where necessary, special applications 94 3.7
can be programmed that will provide you with an optimal solution.

Highest level support
The Sapphire team recognises that fast response is imperative in DETAIL A
serving the needs of the industry. With machines available from SCALE 1 : 4
stock and an extensive rental fleet, rapid support is available even if 6.3 159
your application calls for a customised solution.
Installation and start-up services are available with training packages File Location : G:\My Documents\SolidWorks\Cheyney\SW_LOCAL\Machine Assemblies\CDD3000540 - G20 SS L-R XWEIGH 2500 LONG DATE DIMENSIONS ARE IN MILLIMETERS NAME DATE Cheyney Design & Development Ltd
AMENDMENTS
ISSUE
TOLERANCES:
GENERAL : 0.25 0.25 DRAWN G Clifton 16/04/2013 New Cambridge House, Litlington,
Royston
MACHINING :
to suit all levels of staff. All Sapphire systems have remote support AS DRAWN OPP HAND ENG APPR. Herts, SG8 0SS, UK.
CHECKED
FABRICATION :
0.80
BEND/ANGULAR :
0.25
MFG APPR.
-- -- Q.A. TITLE
facilities enabled through secure hosting centers, and a world-wide Material <not specified> COMMENTS: CDD3000540 - G20 SS L-R XWEIGH 2500 LONG
MATERIAL
PROPRIETARY AND CONFIDENTIAL
DWG. NO.
DWG. NO.
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF FINISH SIZE SIZE A3 CDD3000540 REV. REV. 0
SAPPHIRE INSPECTION SYSTEMS LTD. ANY REPRODUCTION IN PART OR AS A
WHOLE WITHOUT THE WRITTEN PERMISSION OF SAPPHIRE INSPECTION SYSTEMS
team of service engineers will respond promptly when needed. LTD IS PROHIBITED. DO NOT SCALE DRAWINGS SCALE: 1:10 MASS: 343338.07 g SHEET 1 OF 1
SHEET 1 OF 1
Sapphire SAC, 9505 N. Congress Ave, Kansas City, MO 64153
t: 630-288-2600 e: enquiries@sapphiresac.com www.sapphiresac.com
