MACHINE ACCESSORIES
PRODUCT FEEDERS
All-Fill complements its auger filling machines with a complete line of efficient, reliable delivery
systems for free-flowing powders, non-flowing products, and bulk solids. Built for maximum
MODEL ISC
Inclined Screwfeeder efficiency, safety, and ease of maintenance, our horizontal screw conveyors and inclined screw
feeders are available in a variety of configurations, with options and accessories to help solve your
most difficult product feeding challenges.
SPECIFICATION SUMMARY:

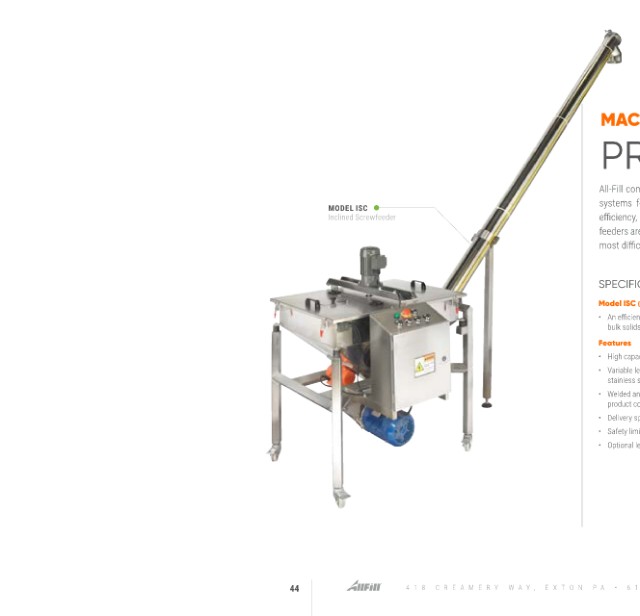

Model ISC (pictured left) Model HSC (pictured below)
• An efficient, reliable delivery system for powders and
bulk solids dispensed by auger type filling machines.

Features
• High capacity (6 cu. ft.) hopper with hinged cover
• Variable length (10’ - 15’), 5” pitch/5” diameter,
stainless steel conveyor screw

• Welded and polished type-304 stainless steel
product contact parts Features
• Delivery speeds up to 180 cu. ft. per hour • Drop-lip stainless steel gasketed cover
• Safety limit switches on trough and hopper covers • 16” long, 5” diameter continuously welded, grounded,
• Optional level control available and polished screw
• 1/2 HP, 230/460-3-60 TEFC motor with an in-line gear
drive
• Saddle mounting for All-Fill Model B filling head
• Flexible connection tubing and clamps

• Optional variable speed motor, level control, and special
mounting available
44 418 C REAMER Y W A Y , EXT ON P A • 610 . 524 . 735 • INFO @ ALL - FILL . C OM • WWW . ALL - FILL . C OM
