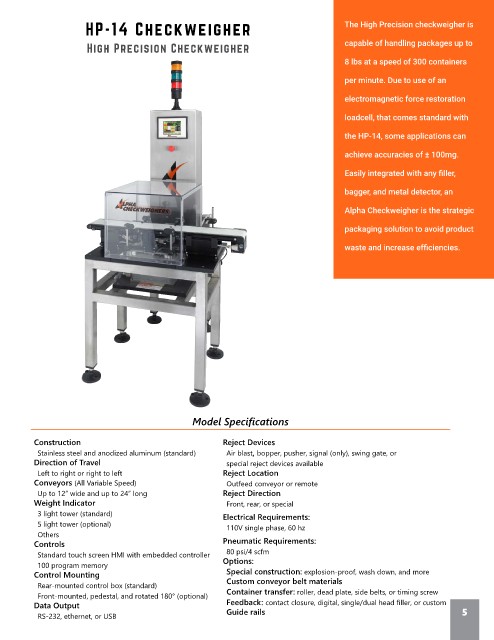

HP-14 Checkweigher The High Precision checkweigher is

capable of handling packages up to
High Precision Checkweigher
8 lbs at a speed of 300 containers

per minute. Due to use of an
electromagnetic force restoration

loadcell, that comes standard with

the HP-14, some applications can

achieve accuracies of ± 100mg.

Easily integrated with any filler,

bagger, and metal detector, an

Alpha Checkweigher is the strategic
packaging solution to avoid product

waste and increase efficiencies.

Model Specifications

Construction Reject Devices
Stainless steel and anodized aluminum (standard) Air blast, bopper, pusher, signal (only), swing gate, or
Direction of Travel special reject devices available
Left to right or right to left Reject Location
Conveyors (All Variable Speed) Outfeed conveyor or remote
Up to 12” wide and up to 24” long Reject Direction
Weight Indicator Front, rear, or special
3 light tower (standard)
Electrical Requirements:
5 light tower (optional)
110V single phase, 60 hz
Others
Pneumatic Requirements:
Controls
80 psi/4 scfm
Standard touch screen HMI with embedded controller
Options:
100 program memory
Special construction: explosion-proof, wash down, and more
Control Mounting
Custom conveyor belt materials
Rear-mounted control box (standard)
Container transfer: roller, dead plate, side belts, or timing screw
Front-mounted, pedestal, and rotated 180° (optional)
Feedback: contact closure, digital, single/dual head filler, or custom
Data Output
Guide rails 5
RS-232, ethernet, or USB
