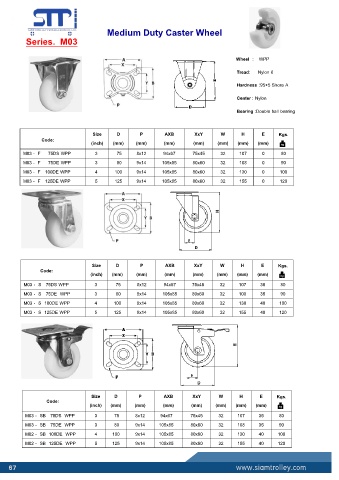

Page 78 - Cat_201064

Series. M03 Medium Duty Caster Wheel

Wheel : WPP

Tread: Nylon 6

Hardness :95+5 Shore A

1
Center : Nylon

Bearing :Double ball bearing

Size D P AXB XxY W H E Kgs.
Code:
(inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M03 - F 75DS WPP 3 75 8x12 94x67 75x45 32 107 0 80
2 M03 - F 75DE WPP 3 80 9x14 105x85 80x60 32 108 0 90

M03 - F 100DE WPP 4 100 9x14 105x85 80x60 32 130 0 100
M03 - F 125DE WPP 5 125 9x14 105x85 80x60 32 155 0 120

Size D P AXB XxY W H E Kgs.
Code:
(inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

M03 - S 75DS WPP 3 75 8x12 94x67 75x45 32 107 35 80

M03 - S 75DE WPP 3 80 9x14 105x85 80x60 32 108 35 90
M03 - S 100DE WPP 4 100 9x14 105x85 80x60 32 130 40 100
M03 - S 125DE WPP 5 125 9x14 105x85 80x60 32 155 40 120

Size D P AXB XxY W H E Kgs.
Code: (inch) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
M03 - SB 75DS WPP 3 75 8x12 94x67 75x45 32 107 35 80

M03 - SB 75DE WPP 3 80 9x14 105x85 80x60 32 108 35 90
M02 - SB 100DE WPP 4 100 9x14 105x85 80x60 32 130 40 100
M02 - SB 125DE WPP 5 125 9x14 105x85 80x60 32 155 40 120

67 www.siamtrolley.com
