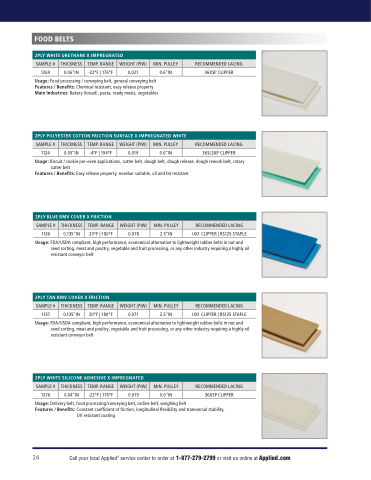

Page 24 - 9569_Lightweight Belt Booklet_REDESIGN_DIGITAL bookmarks

FOOD BELTS
2PLY WHITE URETHANE X IMPREGNATED
SAMPLE #
THICKNESS
TEMP. RANGE
1269
Usage: Food processing / conveying belt, general conveying belt Features / Benefits: Chemical resistant, easy release property Main Industries: Bakery (bread), pasta, ready meals, vegetables
1124
36XSP CLIPPER
WEIGHT (PIW)
0.021
MIN. PULLEY
0.6"IN
RECOMMENDED LACING
0.06"IN
-22°F | 176°F
2PLY POLYESTER COTTON FRICTION SURFACE X IMPREGNATED WHITE
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.05"IN
-4°F | 194°F
0.019
0.6"IN
36SLSXP CLIPPER
Usage: Biscuit / cookie pre-oven applications, cutter belt, dough belt, dough release, dough rework belt, rotary cutter belt
Features / Benefits: Easy release property, nosebar suitable, oil and fat resistant
1136 UX1 CLIPPER | RS125 STAPLE
Usage: FDA/USDA compliant, high performance, economical alternative to lightweight rubber belts in nut and seed sorting, meat and poultry, vegetable and fruit processing, or any other industry requiring a highly oil resistant conveyor belt
2PLY BLUE RMV COVER X FRICTION
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.135"IN
20°F | 180°F
0.078
2.5"IN
2PLY TAN RMV COVER X FRICTION
SAMPLE #
1137
UX1 CLIPPER | RS125 STAPLE
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.135"IN
20°F | 180°F
0.071
2.5"IN
Usage: FDA/USDA compliant, high performance, economical alternative to lightweight rubber belts in nut and seed sorting, meat and poultry, vegetable and fruit processing, or any other industry requiring a highly oil resistant conveyor belt
1276 36XSP CLIPPER
Usage: Delivery belt, food processing/conveying belt, incline belt, weighing belt
Features / Benefits: Constant coefficient of friction, longitudinal flexibility and transversal stability,
UV resistant coating
2PLY WHITE SILICONE ADHESIVE X IMPREGNATED
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.04"IN
-22°F | 176°F
0.019
0.6"IN
