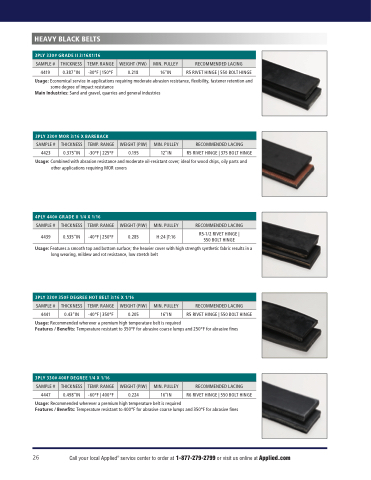

HEAVY BLACK BELTS
3PLY 330# GRADE II 3/16X1/16
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
4419 R5 RIVET HINGE | 550 BOLT HINGE
Usage: Economical service in applications requiring moderate abrasion resistance, flexibility, fastener retention and some degree of impact resistance
Main Industries: Sand and gravel, quarries and general industries
4423 R5 RIVET HINGE | 375 BOLT HINGE
Usage: Combined with abrasion resistance and moderate oil-resistant cover; ideal for wood chips, oily parts and other applications requiring MOR covers
0.218
MIN. PULLEY
16"IN
RECOMMENDED LACING
0.387"IN
-30°F | 150°F
3PLY 330# MOR 3/16 X BAREBACK
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.375"IN
-30°F | 225°F
0.195
12"IN
4PLY 440# GRADE II 1/4 X 1/16
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
4439
R5-1/2 RIVET HINGE | 550 BOLT HINGE
0.535"IN
-40°F | 250°F
0.285
H:24 |T:16
Usage: Features a smooth top and bottom surface; the heavier cover with high strength synthetic fabric results in a long wearing, mildew and rot resistance, low stretch belt
4441 R5 RIVET HINGE | 550 BOLT HINGE Usage: Recommended wherever a premium high temperature belt is required
Features / Benefits: Temperature resistant to 350°F for abrasive coarse lumps and 250°F for abrasive fines
4447 R6 RIVET HINGE | 550 BOLT HINGE Usage: Recommended wherever a premium high temperature belt is required
Features / Benefits: Temperature resistant to 400°F for abrasive coarse lumps and 350°F for abrasive fines
3PLY 330# 350F DEGREE HOT BELT 3/16 X 1/16
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.43"IN
-40°F | 350°F
0.205
16"IN
3PLY 330# 400F DEGREE 1/4 X 1/16
SAMPLE #
THICKNESS
TEMP. RANGE
WEIGHT (PIW)
MIN. PULLEY
RECOMMENDED LACING
0.498"IN
-60°F | 400°F
0.224
16"IN
