Page 3 - Spec NBCS
P. 3

Specifications :
                   •  Motorized Front Window, max ppening 400 mm
                   •  Display : LCD touchscreen for all operation include parameter work in
                   •  Inflow Velocity : avg. 0.53 ± 0.025 m/s, Down flow Velocity : avg. 0.33 ± 0.025
                       m/s,
                   •  HEPA Filter : 99.99% efficient at 0.3 µm with filter life indicator
                   •  Material Work Zone : SUS 304 welded with a pharmaceutical grade finish
                   •  Main Body Material : Cold-Rolled steel with anti- bacteria epoxy powder coating
                   •  Work Surface Height : 750mm
                   •  Caster : Universal wheel with levelling feet
                   •  Power Supply :  220 V  60 Hz
                   •  Accessories : Fluorescence lamp (2 unit), UV Lamp (1 unit), Remote Control,
                       Foot Switch, Drain Valve, Waterproof socket (2 units).
                   •  Exhaust motor-blower included
                   •  Scrubbing system with fully automatic working
                   •  Referring to the regulation of The Minister of Health while release waste water

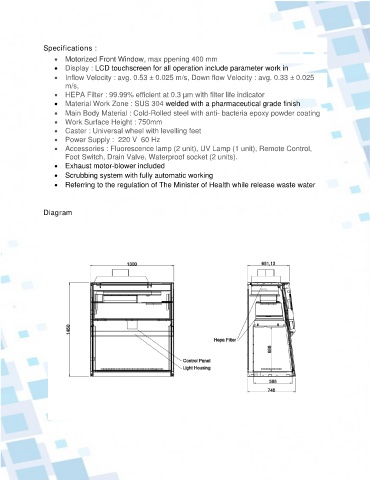

               Diagram
   1   2   3   4
