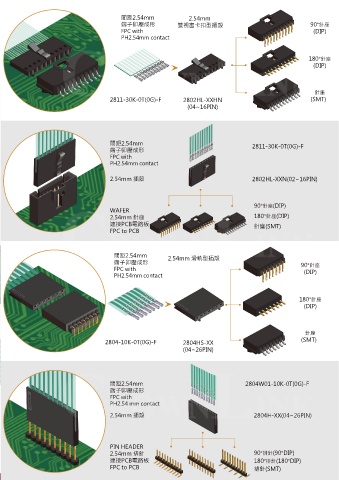

間距2.54mm 2.54mm
端子卯壓成形 雙視窗卡扣型插殼 90°針座
FPC with (DIP)
PH2.54mm contact

180°針座
(DIP)

針座
2811-30K-0T(0G)-F 2802HL-XXHN (SMT)
(04~16PIN)

間距2.54mm 2811-30K-0T(0G)-F
端子卯壓成形
FPC with
PH2.54mm contact

2.54mm 插殼 2802HL-XXN(02~16PIN)

90°針座(DIP)
WAFER
2.54mm 針座 180°針座(DIP)
連接PCB電路板 針座(SMT)
FPC to PCB

間距2.54mm 2.54mm 滑軌型插殼
端子卯壓成形 90°針座
FPC with (DIP)
PH2.54mm contact

180°針座
(DIP)

針座
2804-10K-0T(0G)-F 2804HS-XX (SMT)
(04~26PIN)

間距2.54mm 2804W01-10K-0T(0G)-F
端子卯壓成形
FPC with
PH2.54 mm contact
2.54mm 插殼 2804H-XX(04~26PIN)

PIN HEADER
2.54mm 排針 90°排針(90°DIP)
連接PCB電路板 180°排針(180°DIP)
FPC to PCB 排針(SMT)
