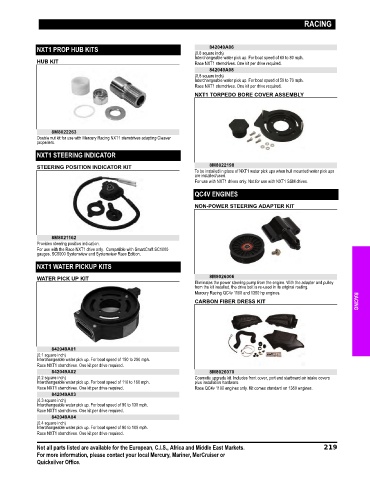

Page 226 - Quicksilver Accesories Guide 2019

RACING

NXT1 PROP HUB KITS 842049A06
(0.6 square inch)
Interchangeable water pick up. For boat speed of 60 to 80 mph.
HUB KIT Race NXT1 sterndrives. One kit per drive required.
842049A08
(0.8 square inch)
Interchangeable water pick up. For boat speed of 50 to 70 mph.
Race NXT1 sterndrives. One kit per drive required.
NXT1 TORPEDO BORE COVER ASSEMBLY

8M8022263
Double nut kit for use with Mercury Racing NXT1 sterndrives adapting Cleaver
propellers.
NXT1 STEERING INDICATOR

STEERING POSITION INDICATOR KIT 8M8022198
To be installed in place of NXT1 water pick ups when hull mounted water pick ups
are installed/used.
For use with NXT1 drives only. Not for use with NXT1 SSM drives.
QC4V ENGINES

NON-POWER STEERING ADAPTER KIT

8M8021162
Provides steering position indication.
For use with the Race NXT1 drive only. Compatible with SmartCraft SC1000
gauges, SC5000 Systemview and Systemview Race Edition.
NXT1 WATER PICKUP KITS

WATER PICK UP KIT 8M8026006
Eliminates the power steering pump from the engine. With the adapter and pulley
from the kit installed, the drive belt is re‑used in its original routing.
Mercury Racing QC4v 1100 and 1350 hp engines.
CARBON FIBER DRESS KIT RACING

842049A01
(0.1 square inch)
Interchangeable water pick up. For boat speed of 150 to 200 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A02 8M8026070
(0.2 square inch) Cosmetic upgrade kit. Includes front cover, port and starboard air intake covers
Interchangeable water pick up. For boat speed of 110 to 160 mph. plus installation hardware.
Race NXT1 sterndrives. One kit per drive required. Race QC4v 1100 engines only. Kit comes standard on 1350 engines.
842049A03
(0.3 square inch)
Interchangeable water pick up. For boat speed of 90 to 130 mph.
Race NXT1 sterndrives. One kit per drive required.
842049A04
(0.4 square inch)
Interchangeable water pick up. For boat speed of 80 to 100 mph.
Race NXT1 sterndrives. One kit per drive required.

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 219
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
