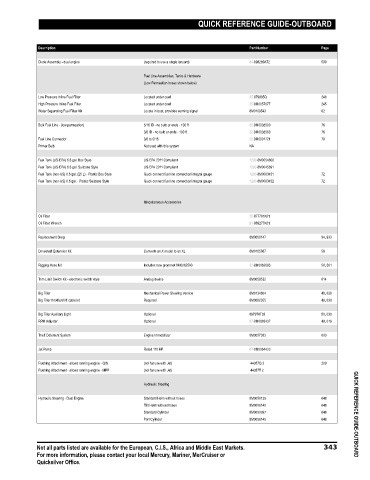

Page 350 - Quicksilver Accesories Guide 2019

QUICK REFERENCE GUIDE-OUTBOARD

Description Part Number Page

Diode Assembly - dual engine (required to use a single lanyard) 84-898289A72 599

Fuel Line Assemblies, Tanks & Hardware
(Low Permeation hoses shown below)

Low Pressure Inline Fuel Filter Located under cowl 35-879885Q 248
High Pressure Inline Fuel Filter Located under cowl 35-8M0057677 245
Water Separating Fuel Filter Kit Locate in boat, provides warning signal 8M0109543 82

Bulk Fuel Line - (low permeation) 5/16 ID - no bulb or ends - 100 ft. 32-8M0038500 76
3/8 ID - no bulb or ends - 100 ft. 32-8M0038563 76
Fuel Line Connector 3/8 to 5/16 22-8M0001721 79
Primer Bulb Not used with this system NA

Fuel Tank (US-EPA) 6.6 gal. Box Style US-EPA 2011 Compliant 1200-8M0054600
Fuel Tank (US-EPA) 6.6 gal. Suitcase Style US-EPA 2011 Compliant 1200-8M0045691
Fuel Tank (non-US) 6.6 gal. (25 L) - Plastic Box Style Quick connect fuel line connection/integral gauge 1200-8M0083451 72
Fuel Tank (non-US) 6.6 gal. - Plastic Suitcase Style Quick connect fuel line connection/integral gauge 1200-8M0083452 72

Miscellaneous Accessories

Oil Filter 35-877761K01
Oil Filter Wrench 91-889277K01

Replacement Skeg 8M0060147 94, 933

Driveshaft Extension Kit Converts an X model to an XL 8M0105087 59

Rigging Hose Kit Includes new grommet 8M0062583 32-8M0062693 56, 501

Trim Limit Switch Kit - electronic switch style Analog device 8M0059532 614

Big Tiller Mechanical Power Steering Version 8M0134604 48, 628
Big Tiller throttle/shift cable kit Required 8M0082355 49, 630

Big Tiller Auxiliary Light Optional 897978T02 50, 630
RPM Adjuster Optional 87-8M0083437 49, 616

Theft Deterrent System Engine Immobilizer 8M0057383 603

Jet Pump Rated 110 HP 67-8M0064433

Flushing Attachment - allows running engine - Q/S (not for use with Jet) 44357Q 2 209
Flushing Attachment - allows running engine - MPP (not for use with Jet) 44357T 2

Hydraulic Steering

Hydraulic Steering - Dual Engine Standard Helm without hoses 8M0056139 648
Tilit Helm without hoses 8M0056140 648
Standard Cylinder 8M0050097 648 QUICK REFERENCE GUIDE-OUTBOARD
Port Cylinder 8M0056145 648

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 343
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
