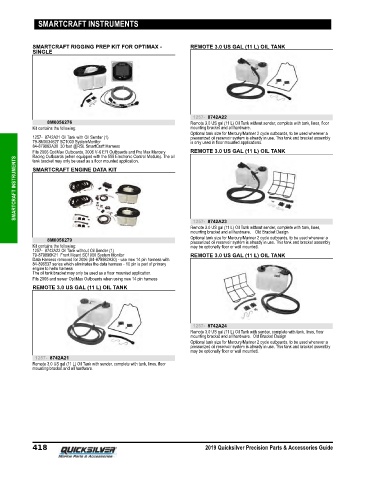

Page 425 - Quicksilver Accesories Guide 2019

SMARTCRAFT INSTRUMENTS

SMARTCRAFT RIGGING PREP KIT FOR OPTIMAX - REMOTE 3.0 US GAL (11 L) OIL TANK
SINGLE

1257- 8742A22
8M0056276 Remote 3.0 US gal (11 L) Oil Tank without sender, complete with tank, lines, floor
Kit contains the following: mounting bracket and all hardware.
Optional tank size for Mercury/Mariner 2 cycle outboards, to be used wherever a
1257‑ 8742A21 Oil Tank with Oil Sender (1) pressurized oil reservoir system is already in use. This tank and bracket assembly
79‑8M0034627 SC1000 SystemMonitor is only used in floor mounted applications.
84‑879982A30 30 foot @RSL SmartCraft Harness
Fits 2006 OptiMax Outboards, 2006 V‑6 EFI Outboards and Pro Max Mercury REMOTE 3.0 US GAL (11 L) OIL TANK
Racing Outboards (when equipped with the 555 Electronic Control Module). The oil
SMARTCRAFT INSTRUMENTS
tank bracket may only be used as a floor mounted application.
SMARTCRAFT ENGINE DATA KIT

1257- 8742A23
Remote 3.0 US gal (11 L) Oil Tank without sender, complete with tank, lines,
mounting bracket and all hardware. Old Bracket Design
Optional tank size for Mercury/Mariner 2 cycle outboards, to be used wherever a
8M0056279 pressurized oil reservoir system is already in use. This tank and bracket assembly
Kit contains the following: may be optionally floor or wall mounted.
1257‑ 8742A22 Oil Tank without Oil Sender (1)
79‑879896K21 Front Mount SC1000 System Monitor REMOTE 3.0 US GAL (11 L) OIL TANK
Data Harness removed for 2006 (84‑879982A30) ‑ use new 14 pin harness with
84‑896537 series which eliminates the data harness ‑ 10 pin is part of primary
engine to helm harness
The oil tank bracket may only be used as a floor mounted application.
Fits 2006 and newer OptiMax Outboards when using new 14 pin harness
REMOTE 3.0 US GAL (11 L) OIL TANK

1257- 8742A24
Remote 3.0 US gal (11 L) Oil Tank with sender, complete with tank, lines, floor
mounting bracket and all hardware. Old Bracket Design
Optional tank size for Mercury/Mariner 2 cycle outboards, to be used wherever a
pressurized oil reservoir system is already in use. This tank and bracket assembly
may be optionally floor or wall mounted.
1257- 8742A21
Remote 3.0 US gal (11 L) Oil Tank with sender, complete with tank, lines, floor
mounting bracket and all hardware.

418 2019 Quicksilver Precision Parts & Accessories Guide
