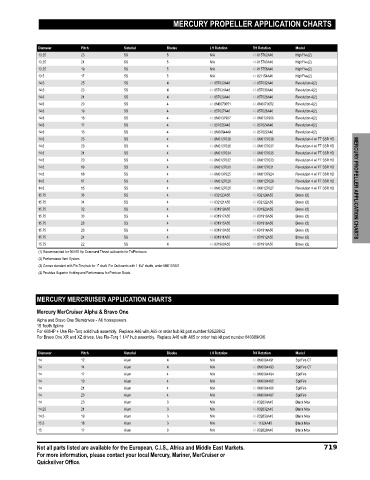

MERCURY PROPELLER APPLICATION CHARTS

Diameter Pitch Material Blades LH Rotation RH Rotation Model
13.25 23 SS 5 N/A 48-815762A46 HighFive(2)
13.25 21 SS 5 N/A 48-815760A46 HighFive(2)
13.25 19 SS 5 N/A 48-815758A46 HighFive(2)
13.5 17 SS 5 N/A 48-821154A46 HighFive(2)
14.6 25 SS 4 48-857033A46 48-857032A46 Revolution 4(2)
14.6 23 SS 4 48-857031A46 48-857030A46 Revolution 4(2)
14.6 21 SS 4 48-857029A46 48-857028A46 Revolution 4(2)
14.6 20 SS 4 48-8M0070051 48-8M0070052 Revolution 4(2)
14.6 19 SS 4 48-857027A46 48-857026A46 Revolution 4(2)
14.6 18 SS 4 48-8M0137907 48-8M0137906 Revolution 4(2)
14.6 17 SS 4 48-857025A46 48-857024A46 Revolution 4(2)
14.6 15 SS 4 48-8M0064449 48-857022A46 Revolution 4(2)
14.6 25 SS 4 48-8M0127038 48-8M0127039 Revolution 4 w/ FT SSR HD
14.6 23 SS 4 48-8M0127036 48-8M0127037 Revolution 4 w/ FT SSR HD
14.6 21 SS 4 48-8M0127034 48-8M0127035 Revolution 4 w/ FT SSR HD
14.6 20 SS 4 48-8M0127032 48-8M0127033 Revolution 4 w/ FT SSR HD
14.6 19 SS 4 48-8M0127030 48-8M0127031 Revolution 4 w/ FT SSR HD
14.6 18 SS 4 48-8M0137925 48-8M0137924 Revolution 4 w/ FT SSR HD
14.6 17 SS 4 48-8M0127028 48-8M0127029 Revolution 4 w/ FT SSR HD
14.6 15 SS 4 48-8M0127026 48-8M0127027 Revolution 4 w/ FT SSR HD MERCURY PROPELLER APPLICATION CHARTS
15.75 36 SS 4 48-832123A55 48-832124A55 Bravo I(3)
15.75 34 SS 4 48-832121A55 48-832122A55 Bravo I(3)
15.75 32 SS 4 48-831919A55 48-831920A55 Bravo I(3)
15.75 30 SS 4 48-831917A55 48-831918A55 Bravo I(3)
15.75 28 SS 4 48-831915A55 48-831916A55 Bravo I(3)
15.75 26 SS 4 48-831913A55 48-831914A55 Bravo I(3)
15.75 24 SS 4 48-831911A55 48-831912A55 Bravo I(3)
15.75 22 SS 4 48-831909A55 48-831910A55 Bravo I(3)
(1) Recommended for 90/115 Hp Command Thrust outboards for Tri/Pontoons
(2) Performance Vent System
(3) Comes standard with Flo-Torq hub for 1" shaft. For Outboards with 1 1/4" shafts, order 8M0101601
(4) Provides Superior Holding and Performance for Pontoon Boats.

MERCURY MERCRUISER APPLICATION CHARTS

Mercury MerCruiser Alpha & Bravo One
Alpha and Bravo One Sterndrives ‑ All Horsepowers
15 Tooth Spline
For 400HP + Use Flo‑Torq solid hub assembly. Replace A46 with A55 or order hub kit part number 835258K2
For Bravo One XR and XZ drives, Use Flo‑Torq 1 1/4" hub assembly. Replace A46 with A65 or order hub kit part number 840389K06.

Diameter Pitch Material Blades LH Rotation RH Rotation Model
14 12 Alum 4 N/A 48-8M0084491 SpitFire CT
14 14 Alum 4 N/A 48-8M0084493 SpitFire CT
14 17 Alum 4 N/A 48-8M0084494 SpitFire
14 19 Alum 4 N/A 48-8M0084495 SpitFire
14 21 Alum 4 N/A 48-8M0084496 SpitFire
14 23 Alum 4 N/A 48-8M0084497 SpitFire
14 23 Alum 3 N/A 48-832834A45 Black Max
14.25 21 Alum 3 N/A 48-832832A45 Black Max
14.5 19 Alum 3 N/A 48-832830A45 Black Max
15.5 18 Alum 3 N/A 48- 11324A45 Black Max
15 17 Alum 3 N/A 48-832828A45 Black Max

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 719
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
