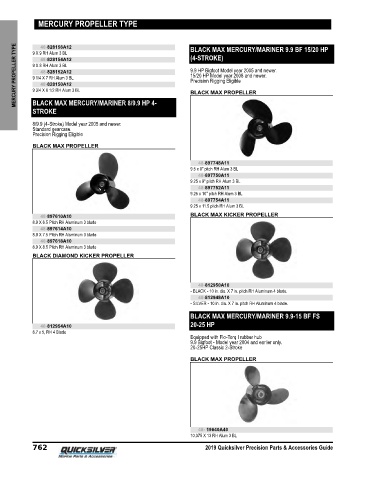

Page 769 - Quicksilver Accesories Guide 2019

MERCURY PROPELLER TYPE

MERCURY PROPELLER TYPE 9 X 9 RH Alum 3 BL BLACK MAX MERCURY/MARINER 9.9 BF 15/20 HP
48-828156A12
(4-STROKE)
48-828154A12
9 X 8 RH Alum 3 BL
9.9 HP Bigfoot Model year 2005 and newer.
48-828152A12
15/20 HP Model year 2008 and newer.
9 1/4 X 7 RH Alum 3 BL
Precision Rigging Eligible
48-828150A12
9 3/4 X 6 1/2 RH Alum 3 BL
BLACK MAX PROPELLER
BLACK MAX MERCURY/MARINER 8/9.9 HP 4-
STROKE
8/9.9 (4‑Stroke) Model year 2005 and newer.
Standard gearcase.
Precision Rigging Eligible

BLACK MAX PROPELLER

48-897748A11
9.5 x 8" pitch RH Alum 3 BL
48-897750A11
9.25 x 9" pitch RH Alum 3 BL
48-897752A11
9.25 x 10" pitch RH Alum 3 BL
48-897754A11
9.25 x 11.5 pitch RH Alum 3 BL
48-897610A10 BLACK MAX KICKER PROPELLER
8.9 X 6.5 Pitch RH Aluminum 3 blade
48-897614A10
8.9 X 7.5 Pitch RH Aluminum 3 blade
48-897618A10
8.9 X 8.5 Pitch RH Aluminum 3 blade
BLACK DIAMOND KICKER PROPELLER

48-812950A10
‑ BLACK ‑ 10 in. dia. X 7 in. pitch RH Aluminum 4 blade.
48-812948A10
‑ SILVER ‑ 10 in. dia. X 7 in. pitch RH Aluminum 4 blade.
BLACK MAX MERCURY/MARINER 9.9-15 BF FS

48-812954A10 20-25 HP
8.7 x 5, RH 4 Blade
Equipped with Flo‑Torq I rubber hub
9.9 Bigfoot ‑ Model year 2004 and earlier only.
20‑25HP Classic 2‑Stroke

BLACK MAX PROPELLER

48- 19640A40
10.375 X 13 RH Alum 3 BL
762 2019 Quicksilver Precision Parts & Accessories Guide
