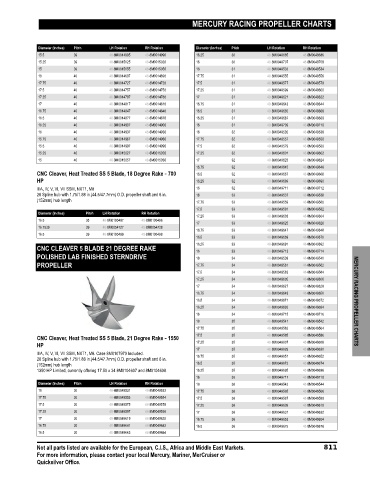

Page 818 - Quicksilver Accesories Guide 2019

MERCURY RACING PROPELLER CHARTS

Diameter (Inches) Pitch LH Rotation RH Rotation Diameter (Inches) Pitch LH Rotation RH Rotation
15.5 39 48-8M0014995 48-8M0014996 16.25 30 48-8M0049685 48-8M0049686
15.25 39 48-8M0015025 48-8M0015026 16 30 48-8M0049707 48-8M0049708
15 39 48-8M0015055 48-8M0015056 18 31 48-8M0049533 48-8M0049534
18 40 48-8M0014697 48-8M0014698 17.75 31 48-8M0049555 48-8M0049556
17.75 40 48-8M0014727 48-8M0014728 17.5 31 48-8M0049577 48-8M0049578
17.5 40 48-8M0014757 48-8M0014758 17.25 31 48-8M0049599 48-8M0049600
17.25 40 48-8M0014787 48-8M0014788 17 31 48-8M0049621 48-8M0049622
17 40 48-8M0014817 48-8M0014818 16.75 31 48-8M0049643 48-8M0049644
16.75 40 48-8M0014847 48-8M0014848 16.5 31 48-8M0049665 48-8M0049666
16.5 40 48-8M0014877 48-8M0014878 16.25 31 48-8M0049687 48-8M0049688
16.25 40 48-8M0014907 48-8M0014908 16 31 48-8M0049709 48-8M0049710
16 40 48-8M0014937 48-8M0014938 18 32 48-8M0049535 48-8M0049536
15.75 40 48-8M0014967 48-8M0014968 17.75 32 48-8M0049557 48-8M0049558
15.5 40 48-8M0014997 48-8M0014998 17.5 32 48-8M0049579 48-8M0049580
15.25 40 48-8M0015027 48-8M0015028 17.25 32 48-8M0049601 48-8M0049602
15 40 48-8M0015057 48-8M0015058 17 32 48-8M0049623 48-8M0049624
16.75 32 48-8M0049645 48-8M0049646
CNC Cleaver, Heat Treated SS 5 Blade, 18 Degree Rake ‑ 700 16.5 32 48-8M0049667 48-8M0049668
HP 16.25 32 48-8M0049689 48-8M0049690
IIIA, IV, V, VI, VII SSM, NXT1, M8 16 32 48-8M0049711 48-8M0049712
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in. 18 33 48-8M0049537 48-8M0049538
(152mm) hub length 17.75 33 48-8M0049559 48-8M0049560
17.5 33 48-8M0049581 48-8M0049582
Diameter (Inches) Pitch LH Rotation RH Rotation
17.25 33 48-8M0049603 48-8M0049604
16.5 38 48-8M0100497 48-8M0100496
17 33 48-8M0049625 48-8M0049626
16.7539 39 48-8M0054727 48-8M0054728
16.75 33 48-8M0049647 48-8M0049648
16.5 39 48-8M0100499 48-8M0100498
16.5 33 48-8M0049669 48-8M0049670
16.25 33 48-8M0049691 48-8M0049692
CNC CLEAVER 5 BLADE 21 DEGREE RAKE 16 33 48-8M0049713 48-8M0049714
POLISHED LAB FINISHED STERNDRIVE 18 34 48-8M0049539 48-8M0049540
PROPELLER 17.75 34 48-8M0049561 48-8M0049562
17.5 34 48-8M0049583 48-8M0049584
17.25 34 48-8M0049605 48-8M0049606
17 34 48-8M0049627 48-8M0049628
16.75 34 48-8M0049649 48-8M0049650
16.5 34 48-8M0049671 48-8M0049672 MERCURY RACING PROPELLER CHARTS
16.25 34 48-8M0049693 48-8M0049694
16 34 48-8M0049715 48-8M0049716
18 35 48-8M0049541 48-8M0049542
17.75 35 48-8M0049563 48-8M0049564
CNC Cleaver, Heat Treated SS 5 Blade, 21 Degree Rake ‑ 1550 17.5 35 48-8M0049585 48-8M0049586
HP 17.25 35 48-8M0049607 48-8M0049608
17 35 48-8M0049629 48-8M0049630
IIIA, IV, V, VI, VII SSM, NXT1, M8. Case 8M0107970 Included. 16.75 35 48-8M0049651 48-8M0049652
26 Spline hub with 1.75/1.88 in.(44.5/47.7mm) O.D. propeller shaft and 6 in.
(152mm) hub length 16.5 35 48-8M0049673 48-8M0049674
1350 HP Limited, currently offering 17.50 x 34 8M0104607 and 8M0104608. 16.25 35 48-8M0049695 48-8M0049696
16 35 48-8M0049717 48-8M0049718
Diameter (Inches) Pitch LH Rotation RH Rotation 18 36 48-8M0049543 48-8M0049544
18 30 48-8M0049531 48-8M0049532 17.75 36 48-8M0049565 48-8M0049566
17.75 30 48-8M0049553 48-8M0049554 17.5 36 48-8M0049587 48-8M0049588
17.5 30 48-8M0049575 48-8M0049576 17.25 36 48-8M0049609 48-8M0049610
17.25 30 48-8M0049597 48-8M0049598 17 36 48-8M0049631 48-8M0049632
17 30 48-8M0049619 48-8M0049620 16.75 36 48-8M0049653 48-8M0049654
16.75 30 48-8M0049641 48-8M0049642 16.5 36 48-8M0049675 48-8M0049676
16.5 30 48-8M0049663 48-8M0049664

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 811
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
