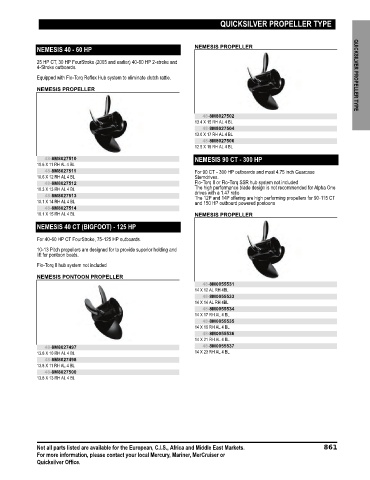

Page 868 - Quicksilver Accesories Guide 2019

QUICKSILVER PROPELLER TYPE

NEMESIS 40 - 60 HP NEMESIS PROPELLER

25 HP CT, 30 HP FourStroke (2005 and earlier) 40‑60 HP 2‑stroke and
4‑Stroke outboards.
Equipped with Flo‑Torq Reflex Hub system to eliminate clutch rattle. QUICKSILVER PROPELLER TYPE

NEMESIS PROPELLER

48-8M8027502
13.4 X 15 RH AL 4 BL
48-8M8027504
13.0 X 17 RH AL 4 BL
48-8M8027506
12.5 X 19 RH AL 4 BL
48-8M8027510 NEMESIS 90 CT - 300 HP
10.6 X 11 RH AL 4 BL
48-8M8027511 For 90 CT ‑ 300 HP outboards and most 4.75 inch Gearcase
10.6 X 12 RH AL 4 BL Sterndrives.
48-8M8027512 Flo‑Torq II or Flo‑Torq SSR hub system not included
10.3 X 13 RH AL 4 BL The high performance blade design is not recommended for Alpha One
drives with a 1.47 ratio
48-8M8027513 The 12P and 14P offering are high performing propellers for 90‑115 CT
10.1 X 14 RH AL 4 BL and 150 HP outboard powered pontoons
48-8M8027514
10.1 X 15 RH AL 4 BL NEMESIS PROPELLER
NEMESIS 40 CT (BIGFOOT) - 125 HP

For 40‑60 HP CT FourStroke, 75‑125 HP outboards.
10‑13 Pitch propellers are designed for to provide superior holding and
lift for pontoon boats.
Flo‑Torq II hub system not included
NEMESIS PONTOON PROPELLER
48-8M0055531
14 X 12 AL RH 4BL
48-8M0055533
14 X 14 AL RH 4BL
48-8M0055534
14 X 17 RH AL 4 BL
48-8M0055535
14 X 19 RH AL 4 BL
48-8M0055536
14 X 21 RH AL 4 BL
48-8M8027497 48-8M0055537
13.8 X 10 RH AL 4 BL 14 X 23 RH AL 4 BL
48-8M8027498
13.8 X 11 RH AL 4 BL
48-8M8027500
13.8 X 13 RH AL 4 BL

Not all parts listed are available for the European, C.I.S., Africa and Middle East Markets. 861
For more information, please contact your local Mercury, Mariner, MerCruiser or
Quicksilver Office.
