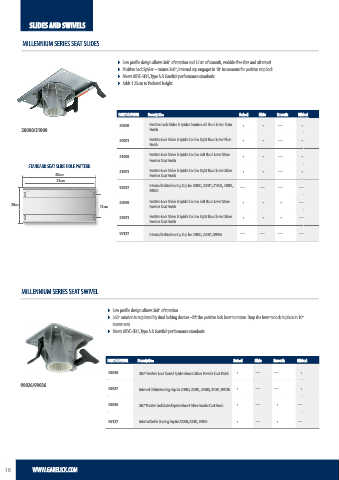

Page 10 - Garelick Catalog 2020

SLIDES AND SWIVELS

MILLENNIUM SERIES SEAT SLIDES

Low profile design allows 360° of rotation and 15 cm of smooth, wobble-free fore and aft travel
Positive Lock Spider – rotates 360°, internal cup engages in 10° increments for positive stop lock
Meets ABYC-H31, Type A & Garelick performance standards
Adds 1.25 cm to Pedestal height.

PART NUMBER Description Swivel Slide Smooth Ribbed

20000 Positive Lock Slider & Spider Combo Left Hand Lever Plain • • — •
20000/21000 Finish
20001 Positive Lock Slider & Spider Combo Right Hand Lever Plain • • — •
Finish

21000 Positive Lock Slider & Spider Combo Left Hand Lever Silver • • — •
Powder Coat Finish
STANDARD SEAT SLIDE HOLE PATTERN
21001 Positive Lock Slider & Spider Combo Right Hand Lever Silver • • — •
33 cm Powder Coat Finish
31 cm
99027 Internal Delrin Bearing Cup for 20000, 20001, 21000, 21001, — — — —
99026

22000 Positive Lock Slider & Spider Combo Left Hand Lever Silver • • • —
20 cm 13 cm Powder Coat Finish
22001 Positive Lock Slider & Spider Combo Right Hand Lever Silver • • • —
Powder Coat Finish
99127 Internal Delrin Bearing Cup for 22000, 22001, 99036 — — — —

MILLENNIUM SERIES SEAT SWIVEL

Low profile design allows 360° of rotation
360° rotation is regulated by dual locking devices - lift the positive lock lever to rotate. Drop the lever to lock in place in 10°
increments
Meets ABYC-H31, Type A & Garelick performance standards

PART NUMBER Description Swivel Slide Smooth Ribbed

99026 360° Positive Lock Swivel Spider Mount Silver Powder Coat Finish • — — •

99026/99036 99027 Internal Delrin Bearing Cup for 20000, 20001, 21000, 21001, 99026 • — — •

99036 360° Positive Lock Swivel Spider Mount Silver Powder Coat Finish • — • —

99127 Internal Delrin Bearing Cup for 22000, 22001, 99036 • — • —

10 10 WWW.GARELICK.COM
