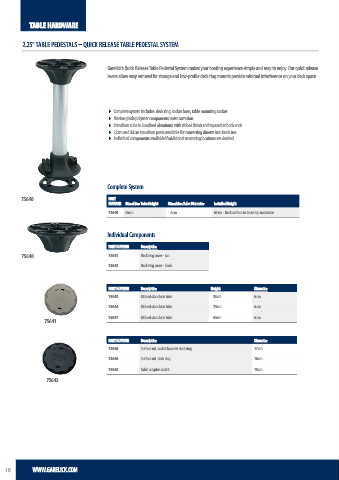

Page 18 - Garelick Catalog 2020

TABLE HARDWARE

2.25" TABLE PEDESTALS – QUICK RELEASE TABLE PEDESTAL SYSTEM

Garelick’s Quick Release Table Pedestal System makes your boating experience simple and easy to enjoy. Our quick release
levers allow easy removal for storage and low-profile deck ring mounts provide minimal interference on your deck space.

Complete system includes: deck ring, socket base, table mounting socket
Marine grade polymer components resist corrosion
Stanchion tube is Anodized aluminum with ribbed finish and tapered at both ends
23 cm and 33 cm stanchion posts available for converting dinette into bunk use
Individual components available if additional mounting locations are desired

Complete System

75640 PART
NUMBER Stanchion Tube Height Stanchion Tube Diameter Installed Height
75640 65 cm 6 cm 69 cm - Deck surface to table top underside

Individual Components

PART NUMBER Description
75648 75641 Deck ring cover - tan

75642 Deck ring cover - black

PART NUMBER Description Height Diameter
75643 Ribbed stanchion tube 33 cm 6 cm

75644 Ribbed stanchion tube 23 cm 6 cm
75647 Ribbed stanchion tube 65 cm 6 cm
75641

PART NUMBER Description Diameter
75645 Surface mt. socket base w/ deck ring 17 cm
75646 Surface mt. deck ring 16 cm
75648 Table adapter socket 18 cm
75642
