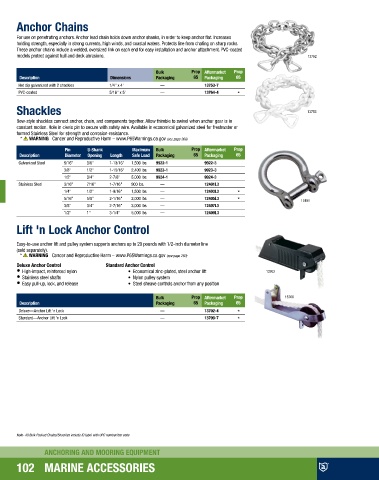

Page 104 - Attwood Marine Products Collection 2020

Anchor Chains

For use on penetrating anchors. Anchor lead chain holds down anchor shanks, in order to keep anchor flat. Increases
holding strength, especially in strong currents, high winds, and coastal waters. Protects line from chafing on sharp rocks.
These anchor chains include a welded, oversized link on each end for easy installation and anchor attachment. PVC-coated
models protect against hull and deck abrasions. 13762

Bulk Prop Aftermarket Prop
Description Dimensions Packaging 65 Packaging 65
Hot dip galvanized with 2 shackles 1/4" x 4' — 13753-7
PVC-coated 5/16" x 5' — 13764-4

Shackles 13753

Bow-style shackles connect anchor, chain, and components together. Allow thimble to swivel when anchor gear is in
constant motion. Hole in clevis pin to secure with safety wire. Available in economical galvanized steel for freshwater or
formed Stainless Steel for strength and corrosion-resistance.

Pin U-Shank Maximum Bulk Prop Aftermarket Prop
Description Diameter Opening Length Safe Load Packaging 65 Packaging 65
Galvanized Steel 5/16" 3/8" 1-13/16" 1,500 lbs. 9922-1 9922-3
3/8" 1/2" 1-15/16" 2,400 lbs. 9923-1 9923-3
1/2" 3/4" 2-7/8" 5,000 lbs. 9924-1 9924-3
Stainless Steel 3/16" 7/16" 1-7/16" 900 lbs. — 12401L3
1/4" 1/2" 1-9/16" 1,500 lbs. — 12403L3
5/16" 5/8" 2-1/16" 2,000 lbs. — 12405L3
12401
3/8" 3/4" 2-7/16" 3,000 lbs. — 12407L3
1/2" 1" 3-1/4" 5,000 lbs. — 12409L3
Lift 'n Lock Anchor Control

Easy-to-use anchor lift and pulley system supports anchors up to 20 pounds with 1/2-inch diameter line
(sold separately).

Deluxe Anchor Control Standard Anchor Control
• High-impact, reinforced nylon • Economical zinc-plated, steel anchor lift 13702
• Stainless steel shafts • Nylon pulley system
• Easy pull-up, lock, and release • Steel sheave controls anchor from any position

Bulk Prop Aftermarket Prop 13700
Description Packaging 65 Packaging 65
Deluxe—Anchor Lift ’n Lock — 13702-4
Standard—Anchor Lift ’n Lock — 13700-7

Note- All Bulk Packed Chains/Shackles include ID label with UPC number/bar code

ANCHORING AND MOORING EQUIPMENT

102 MARINE ACCESSORIES
