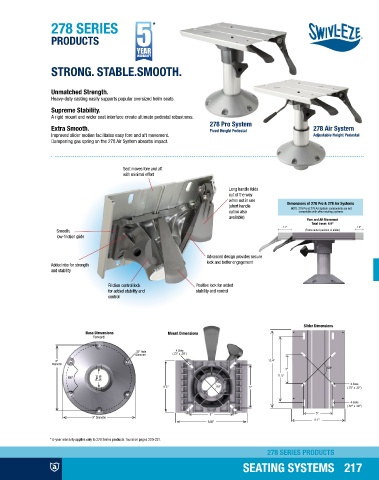

278 SERIES *

PRODUCTS

STRONG. STABLE.SMOOTH.

Unmatched Strength.
Heavy-duty casting easily supports popular oversized helm seats.

Supreme Stability.
A rigid mount and wider seat interface create ultimate pedestal robustness.
278 Pro System
Extra Smooth. Fixed Height Pedestal 278 Air System
Improved slider motion facilitates easy fore and aft movement. Adjustable Height Pedestal
Dampening gas spring on the 278 Air System absorbs impact.

Seat moves fore and aft
with minimal effort

Long handle folds
out of the way
when not in use Dimensions of 278 Pro & 278 Air Systems
(short handle NOTE: 278 Pro & 278 Air System components are not
option also compatible with other seating systems.
available)
Fore and Aft Movement
Total travel: 4.9"
3.1" 1.8"
Smooth, (From center position of slider)
low-friction glide

Advanced design provides secure
lock and better engagement
Added ribs for strength
and stability

Friction control lock Positive lock for added
for added stability and stability and control
control

Slider Dimensions
Base Dimensions Mount Dimensions
Forward
.32" Hole 4 Slots
Diameter (.72" x .29")
8" 13.4"
Diameter
5" 90°
60° Post Slots 11.5"
4 Slots
6.2" 90° 5" (.75" x .32")

4 Slots
(.87" x .38")
5" 5"
9" Diameter
8.55" 9.1"

* 5-year warranty applies only to 278 Series products, found on pages 220-221.
278 SERIES PRODUCTS

SEATING SYSTEMS 217
