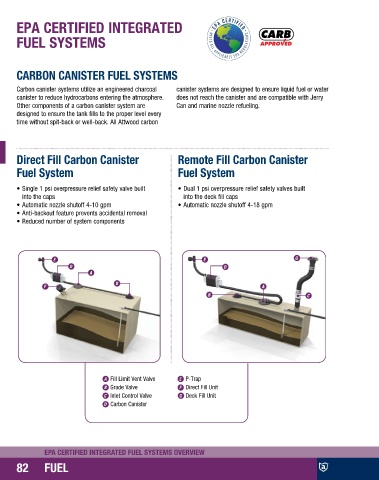

EPA CERTIFIED INTEGRATED
FUEL SYSTEMS
CARBON CANISTER FUEL SYSTEMS
Carbon canister systems utilize an engineered charcoal canister systems are designed to ensure liquid fuel or water
canister to reduce hydrocarbons entering the atmosphere. does not reach the canister and are compatible with Jerry
Other components of a carbon canister system are Can and marine nozzle refueling.
designed to ensure the tank fills to the proper level every
time without spit-back or well-back. All Attwood carbon
Direct Fill Carbon Canister Remote Fill Carbon Canister
Fuel System Fuel System
• Single 1 psi overpressure relief safety valve built • Dual 1 psi overpressure relief safety valves built
into the caps into the deck fill caps
• Automatic nozzle shutoff 4-10 gpm • Automatic nozzle shutoff 4-18 gpm
• Anti-backout feature prevents accidental removal
• Reduced number of system components
Fill Limit Vent Valve P-Trap
Grade Valve Direct Fill Unit
Inlet Control Valve Deck Fill Unit
Carbon Canister
EPA CERTIFIED INTEGRATED FUEL SYSTEMS OVERVIEW
