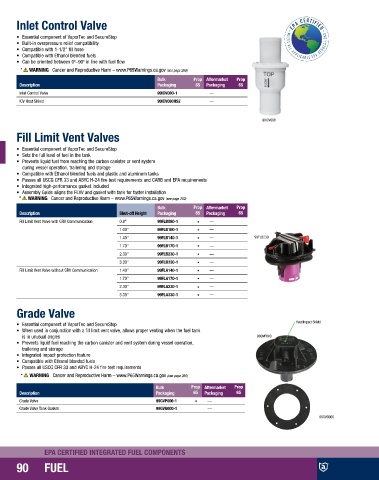

Page 92 - Attwood Marine Products Collection 2020

Inlet Control Valve

• Essential component of VaporTec and SecureStop
• Built-in overpressure relief compatibility
• Compatible with 1-1/2" fill hose
• Compatible with Ethanol blended fuels
• Can be oriented between 0º–90º in line with fuel flow

Bulk Prop Aftermarket Prop
Description Packaging 65 Packaging 65
Inlet Control Valve 99ICV000-1 —
ICV Heat Shield 99ICV000HS2 —

99ICV000
Fill Limit Vent Valves

• Essential component of VaporTec and SecureStop
• Sets the full level of fuel in the tank
• Prevents liquid fuel from reaching the carbon canister or vent system
during vessel operation, trailering and storage
• Compatible with Ethanol blended fuels and plastic and aluminum tanks
• Passes all USCG CFR 33 and ABYC H-24 fire test requirements and CARB and EPA requirements
• Integrated high-performance gasket included
• Assembly Guide aligns the FLVV and gasket with tank for faster installation

Bulk Prop Aftermarket Prop
Description Shut-off Height Packaging 65 Packaging 65
Fill Limit Vent Valve with GRV Communication 0.8" 99FLB080-1 —
1.00" 99FLB100-1 —
1.40" 99FLB140-1 — 99FLB230
1.70" 99FLB170-1 —
2.30" 99FLB230-1 —
3.30" 99FLB330-1 —
Fill Limit Vent Valve without GRV Communication 1.40" 99FLA140-1 —
1.70" 99FLA170-1 —
2.30" 99FLA230-1 —
3.30" 99FLA330-1 —

Grade Valve

• Essential component of VaporTec and SecureStop Heat/Impact Shield
• When used in conjunction with a fill limit vent valve, allows proper venting when the fuel tank
is in unusual angles 99GVP000
• Prevents liquid fuel reaching the carbon canister and vent system during vessel operation,
trailering and storage
• Integrated impact protection feature
• Compatible with Ethanol blended fuels
• Passes all USCG CFR 33 and ABYC H-24 fire test requirements

Bulk Prop Aftermarket Prop
Description Packaging 65 Packaging 65
Grade Valve 99GVP000-1 —
Grade Valve Tank Gasket 99GVG000-1 —
99GVG000

EPA CERTIFIED INTEGRATED FUEL COMPONENTS

90 FUEL
