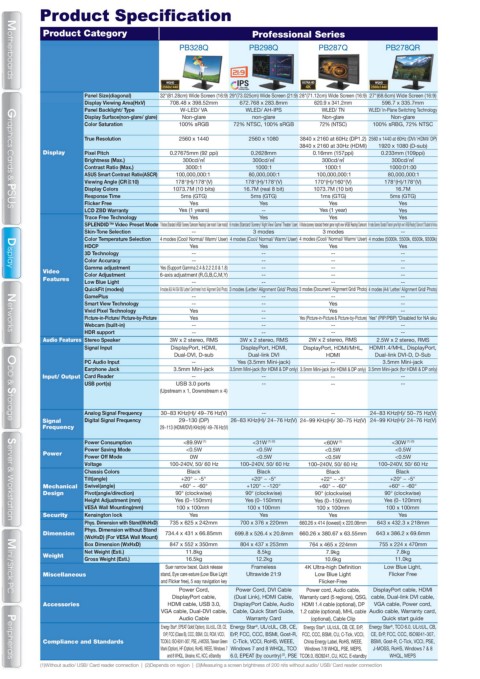

Product Category Pr ofessional Series
Professional Series
PB328Q PB298Q PB287Q PB278QR

21:9
Motherboards
Motherboards
Panel Size(diagonal) 32"(81.28cm) Wide Screen (16:9) 29"(73.025cm) Wide Screen (21:9) 28"(71.12cm) Wide Screen (16:9) 27"(68.6cm) Wide Screen (16:9)
Display Viewing Area(HxV) 708.48 x 398.52mm 672.768 x 283.8mm 620.9 x 341.2mm 596.7 x 335.7mm
Panel Backlight/ Type W-LED/ VA WLED/ AH-IPS WLED/ TN WLED/ In-Plane Switching Technology
Display Surface(non-glare/ glare) Non-glare non-glare Non-glare Non-glare
Color Saturation 100% sRGB 72% NTSC, 100% sRGB 72% (NTSC) 100% sRBG, 72% NTSC
True Resolution 2560 x 1440 2560 x 1080 3840 x 2160 at 60Hz (DP1.2) 2560 x 1440 at 60Hz (DVI/ HDMI/ DP)
3840 x 2160 at 30Hz (HDMI) 1920 x 1080 (D-sub)
Display Pixel Pitch 0.27675mm (92 ppi) 0.2628mm 0.16mm (157ppi) 0.233mm (109ppi)
Brightness (Max.) 300cd/㎡ 300cd/㎡ 300cd/㎡ 300cd/㎡
Contrast Ratio (Max.) 3000:1 1000:1 1000:1 1000:01:00
ASUS Smart Contrast Ratio(ASCR) 100,000,000:1 80,000,000:1 100,000,000:1 80,000,000:1
Viewing Angle (CR≧10) 178°(H)/178°(V) 178°(H)/178°(V) 170°(H)/160°(V) 178°(H)/178°(V)
Display Colors 1073.7M (10 bits) 16.7M (real 8 bit) 1073.7M (10 bit) 16.7M
Response Time 5ms (GTG) 5ms (GTG) 1ms (GTG) 5ms (GTG)
Flicker Free Yes Yes Yes Yes
LCD ZBD Warranty Yes (1 years) -- Yes (1 year) Yes
Graphics Cards & PSUS
Graphics Cards & PSUS
Trace Free Technology Yes Yes Yes Yes
SPLENDID™ Video Preset Mode 7 Modes (Standard/ sRGB/ Scenery/ Darkroom/ Reading/ User mode1 /User mode2) 6 modes (Standard/ Scenery/ Night View/ Game/ Theater/ User) 8 Modes (scenery/ standard/ therter/ game/ noght view/ sRGB/ Reading/ Darkroom) 8 modes (Scenery/ Standard/ Thearter/ game/ Night view*/ sRGB/ Reading*/ Darkroom*) *Disabled for NA sku
Skin-Tone Selection -- 3 modes 3 modes --
Color Temperature Selection 4 modes (Cool/ Normal/ Warm/ User) 4 modes (Cool/ Normal/ Warm/ User) 4 modes (Cool/ Normal/ Warm/ User) 4 modes (5000k. 5500k, 6500k, 9300k)
HDCP Yes Yes Yes Yes
3D Technology -- -- -- --
Color Accuracy -- -- -- --
Gamma adjustment Yes (Support Gamma 2.4 & 2.2 2.0 & 1.8) -- -- --
Display
Display
Video Color Adjustment 6-axis adjustment (R,G,B,C,M,Y) -- -- --
Features
Low Blue Light -- -- -- --
QuickFit (modes) 9 modes (A3/ A4/ B4/ B5/ Letter/ Centimeter/ Inch/ Alignment Grid/ Photo) 3 modes (Letter/ Alignment Grid/ Photo) 3 modes (Document/ Alignment Grid/ Photo) 4 modes (A4/ Letter/ Alignment Grid/ Photo)
GamePlus -- -- -- --
Smart View Technology -- -- Yes --
Vivid Pixel Technology Yes -- Yes --
Picture-in-Picture/ Picture-by-Picture Yes -- Yes (Picture-in-Picture & Picture-by-Picture) Yes* (PIP/PBP) *Disabled for NA sku
Webcam (built-in) -- -- -- --
HDR support -- -- -- --
Networks
Networks
Audio Features Stereo Speaker 3W x 2 stereo, RMS 3W x 2 stereo, RMS 2W x 2 stereo, RMS 2.5W x 2 stereo, RMS
Signal Input DisplayPort, HDMI, DisplayPort, HDMI, DisplayPort, HDMI/MHL, HDMI1.4/MHL, DisplayPort,
Dual-DVI, D-sub Dual-link DVI HDMI Dual-link DVI-D, D-Sub
PC Audio Input -- Yes (3.5mm Mini-jack) -- 3.5mm Mini-jack
Earphone Jack 3.5mm Mini-jack 3.5mm Mini-jack (for HDMI & DP only) 3.5mm Mini-jack (for HDMI & DP only) 3.5mm Mini-jack (for HDMI & DP only)
Input/ Output Card Reader -- -- -- --
USB port(s) USB 3.0 ports -- -- --
(Upstream x 1, Downstream x 4)
Analog Signal Frequency 30~83 KHz(H)/ 49~76 Hz(V) -- -- 24~83 KHz(H)/ 50~75 Hz(V)
Signal Digital Signal Frequency 29~130 (DP) 26~83 KHz(H)/ 24~76 Hz(V) 24~99 KHz(H)/ 30~75 Hz(V) 24~99 KHz(H)/ 24~76 Hz(V)
ODD & Storage
ODD & Storage
Frequency 29~113 (HDMI/DVI) KHz(H)/ 49~76 Hz(V)
(1) (3)
(1) (3)
Power Consumption <89.9W (1) <31W <60W (1) <30W
Power Saving Mode <0.5W <0.5W <0.5W <0.5W
Power
Power Off Mode 0W <0.5W <0.5W <0.5W
Voltage 100-240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz 100–240V, 50/ 60 Hz
Chassis Colors Black Black Black Black
Tilt(angle) Server & Workstation +20° ~ -5° +20° ~ -5° +22° ~ -5° +20° ~ -5°
Mechanical Swivel(angle) +60° ~ -60° +120° ~ -120° +60° ~ -60° +60° ~ -60°
Design Pivot(angle/direction) 90° (clockwise) 90° (clockwise) 90° (clockwise) 90° (clockwise)
Height Adjustment (mm) Yes (0~150mm) Yes (0~150mm) Yes (0~150mm) Yes (0~120mm)
VESA Wall Mounting(mm) 100 x 100mm 100 x 100mm 100 x 100mm 100 x 100mm
Security Kensington lock Yes Yes Yes Yes
Server & Workstation
Phys. Dimension with Stand(WxHxD) 735 x 625 x 242mm 700 x 376 x 220mm 660.26 x 414 (lowest) x 220.06mm 643 x 432.3 x 218mm
Dimension Phys. Dimension without Stand 734.4 x 431 x 66.85mm 699.8 x 526.4 x 20.8mm 660.26 x 380.67 x 63.55mm 643 x 386.2 x 69.6mm
(WxHxD) (For VESA Wall Mount)
Box Dimension (WxHxD) 847 x 552 x 350mm 804 x 437 x 253mm 764 x 465 x 224mm 755 x 224 x 470mm
Net Weight (Esti.) 11.8kg 8.5kg 7.9kg 7.8kg
Weight
Gross Weight (Esti.) 16.5kg 12.2kg 10.6kg 11.0kg
Suer narrow bezel, Quick release Frameless 4K Ultra-high Definition Low Blue Light,
Miscellaneous stand, Eye care eature (Low Blue Light Ultrawide 21:9 Low Blue Light Flicker Free
and Flicker free), 5 way navigation key Flicker-Free
Power Cord, Power Cord, DVI Cable Power cord, Audio cable, DisplayPort cable, HDMI
Mini / Stick PC
DisplayPort cable, (Dual Link), HDMI Cable, Warranty card (5 regions), QSG, cable, Dual-link DVI cable,
Mini / Stick PC
Accessories HDMI cable, USB 3.0, DisplayPort Cable, Audio HDMI 1.4 cable (optional), DP VGA cable, Power cord,
VGA cable, Dual-DVI cable, Cable, Quick Start Guide, 1.2 cable (optional), MHL cable Audio cable, Warranty card,
Audio Cable Warranty Card (optional), Cable Clip Quick start guide
Energy Star ® , EPEAT Gold( Option), UL/cUL, CB, CE, Energy Star ® , UL/cUL, CB, CE, Energy Star ® , UL/cUL, CB, CE, ErP, Energy Star ® , TCO 6.0, UL/cUL, CB,
ErP, FCC (Class B), CCC, BSMI, CU, RCM, VCCI, ErP, FCC, CCC, BSMI, Gost-R, FCC, CCC, BSMI, CU, C-Tick, VCCI, CE, ErP, FCC, CCC, ISO9241-307,
Compliance and Standards TCO6.0, ISO-9241-307, PSE, J-MOSS, Taiwan Green C-Tick, VCCI, RoHS, WEEE, China Energy Label, RoHS, WEEE, BSMI, Gost-R, C-Tick, VCCI, PSE,
Mark (Option), HF (Option), RoHS, WEEE, Windows 7 Windows 7 and 8 WHQL, TCO Windows 7/8 WHQL, PSE, MEPS, J-MOSS, RoHS, Windows 7 & 8
and 8 WHQL, Ukraine, KC, KCC, eStandby 6.0, EPEAT (by country) , PSE TCO6.0, ISO9241, CU, KCC, E-standby WHQL, MEPS
(2)
Peripherals
Peripherals
(1)Without audio/ USB/ Card reader connection | (2)Depends on region | (3)Measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
