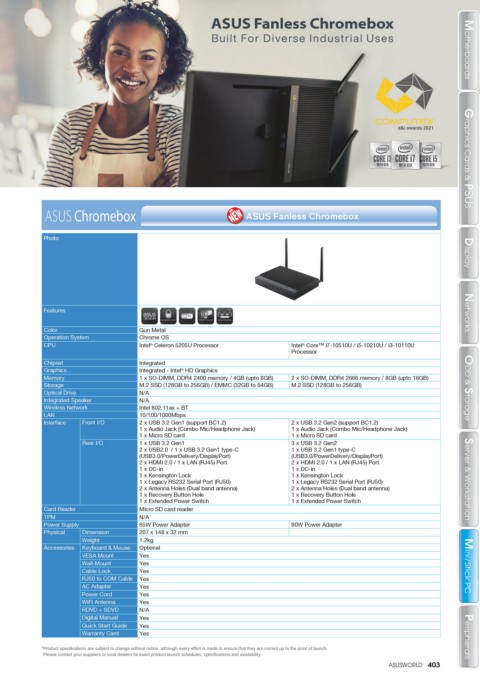

Page 405 - ASUS_WORLD_134_ebook

ASUS Chromebox ASUS Fanless Chromebox Motherboards Motherboards
Graphics Cards & PSUS
Graphics Cards & PSUS
Photo Display Display

Features Networks Networks
Kensington lock VESA mount Dual display
Color Gun Metal
Operation System Chrome OS
CPU Intel ® Celeron 5205U Processor Intel Core™ i7-10510U / i5-10210U / i3-10110U
®
Processor
Chipset Integrated
Graphics Integrated - Intel HD Graphics
®
Memory 1 x SO-DIMM, DDR4 2400 memory / 4GB (upto 8GB) 2 x SO-DIMM, DDR4 2666 memory / 8GB (upto 16GB)
Storage M.2 SSD (128GB to 256GB) / EMMC (32GB to 64GB) M.2 SSD (128GB to 256GB) ODD & Storage ODD & Storage
Optical Drive N/A
Integrated Speaker N/A
Wireless Network Intel 802.11ax + BT
LAN 10/100/1000Mbps
Interface Front I/O 2 x USB 3.2 Gen1 (support BC1.2) 2 x USB 3.2 Gen2 (support BC1.2)
1 x Audio Jack (Combo Mic/Headphone Jack) 1 x Audio Jack (Combo Mic/Headphone Jack)
1 x Micro SD card 1 x Micro SD card
Rear I/O 1 x USB 3.2 Gen1 3 x USB 3.2 Gen2
2 x USB2.0 / 1 x USB 3.2 Gen1 type-C 1 x USB 3.2 Gen1 type-C
(USB3.0/PowerDelivery/DisplayPort) (USB3.0/PowerDelivery/DisplayPort)
2 x HDMI 2.0 / 1 x LAN (RJ45) Port 2 x HDMI 2.0 / 1 x LAN (RJ45) Port
1 x DC-in 1 x DC-in
1 x Kensington Lock 1 x Kensington Lock
1 x Legacy RS232 Serial Port (RJ50) 1 x Legacy RS232 Serial Port (RJ50) Server & Workstation
2 x Antenna Holes (Dual band antenna) 2 x Antenna Holes (Dual band antenna)
1 x Recovery Button Hole 1 x Recovery Button Hole
1 x Extended Power Switch 1 x Extended Power Switch
Card Reader Micro SD card reader
TPM N/A
Server & Workstation
Power Supply 65W Power Adapter 90W Power Adapter
Physical Dimension 207 x 148 x 32 mm
Weight 1.2kg
Accessories Keyboard & Mouse Optional
VESA Mount Yes
Wall-Mount Yes Mini / Stick PC Mini / Stick PC
Cable Lock Yes
RJ50 to COM Cable Yes
AC Adapter Yes
Power Cord Yes
WiFi Antenna Yes
RDVD + SDVD N/A
Digital Manual Yes
Quick Start Guide Yes
Warranty Card Yes Peripherals Peripherals
*Product specifications are subject to change without notice, although every effort is made to ensure that they are correct up to the point of launch.
Please contact your suppliers or local dealers for exact product launch schedules, specifications and availability.
