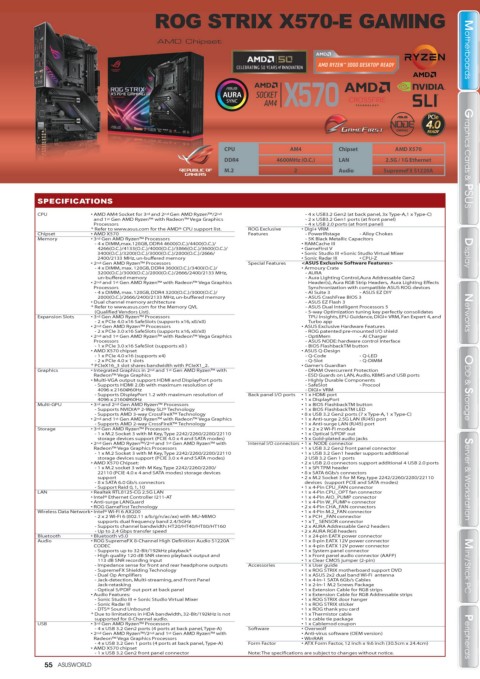

ROG STRIX X570-E GAMING

AMD Chipset Motherboards Motherboards

CPU AM4 Chipset AMD X570
DDR4 4600MHz (O.C.) LAN 2.5G / 1G Ethernet Graphics Cards & PSUS

M.2 2 Audio SupremeFX S1220A

SPECIFICATIONS
Graphics Cards & PSUS
CPU • AMD AM4 Socket for 3 rd and 2 nd Gen AMD Ryzen™/2 nd - 4 x USB3.2 Gen2 (at back panel, 3x Type-A,1 x Type-C)
and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics - 2 x USB3.2 Gen1 ports (at front panel)
Processors - 4 x USB 2.0 ports (at front panel)
* Refer to www.asus.com for the AMD® CPU support list. ROG Exclusive • Digi+ VRM
Chipset • AMD X570 Features - PowerIRstage - Alloy Chokes
Memory • 3 rd Gen AMD Ryzen™ Processors - 5K Black Metallic Capacitors
- 4 x DIMM,max.128GB, DDR4 4600(O.C.)/4400(O.C.)/ • RAMCache III
4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/ • GameFirst V
3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/ • Sonic Studio III +Sonic Studio Virtual Mixer Display
2400/2133 MHz, un-buffered memory • Sonic Radar III • CPU-Z
• 2 nd Gen AMD Ryzen™ Processors Special Features <ASUS Exclusive Software Features>
- 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/ • Armoury Crate
Display
3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz, - AURA
un-buffered memory - Aura Lighting Control,Aura Addressable Gen2
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics Header(s), Aura RGB Strip Headers, Aura Lighting Effects
Processors Synchronization with compatible ASUS ROG devices
- 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/ - AI Suite 3 - ASUS EZ DIY
2800(O.C.)/2666/2400/2133 MHz, un-buffered memory - ASUS CrashFree BIOS 3
• Dual channel memory architecture - ASUS EZ Flash 3
* Refer to www.asus.com for the Memory QVL - ASUS Dual Intelligent Processors 5
(Qualified Vendors List). - 5-way Optimization tuning key perfectly consolidates Networks
Expansion Slots • 3 rd Gen AMD Ryzen™ Processors TPU Insights, EPU Guidance, DIGI+ VRM, Fan Expert 4, and
- 2 x PCIe 4.0 x16 SafeSlots (supports x16, x8/x8) Turbo app
• 2 nd Gen AMD Ryzen™ Processors • ASUS Exclusive Hardware Features
- 2 x PCIe 3.0 x16 SafeSlots (supports x16, x8/x8) - ROG patented pre-mounted I/O shield
Networks
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics - OptiMem - Ai Charger
Processors - ASUS NODE: hardware control interface
- 1 x PCIe 3.0 x16 SafeSlot (supports x8 ) - BIOS FlashbackTM button
• AMD X570 chipset • ASUS Q-Design
- 1 x PCIe 4.0 x16 (supports x4) - Q-Code - Q-LED
- 2 x PCIe 4.0 x 1 slots - Q-Slot - Q-DIMM
* PCIeX16_3 slot shares bandwidth with PCIeX1_2. • Gamer’s Guardian

Graphics • Integrated Graphics in 2 nd and 1 st Gen AMD Ryzen™ with - DRAM Overcurrent Protection
Radeon™ Vega Graphics - ESD Guards on LAN, Audio, KBMS and USB ports
• Multi-VGA output support: HDMI and DisplayPort ports - Highly Durable Components
- Supports HDMI 2.0b with maximum resolution of - SafeSlot - Procool
4096 x 2160@60Hz - DIGI+ VRM ODD & Storage ODD & Storage
- Supports DisplayPort 1.2 with maximum resolution of Back panel I/O ports • 1 x HDMI port
4096 x 2160@60Hz • 1 x DisplayPort
Multi-GPU • 3 rd and 2 nd Gen AMD Ryzen™ Processors • 1 x BIOS FlashbackTM button
- Supports NVIDIA® 2-Way SLI® Technology • 1 x BIOS FlashbackTM LED
- Supports AMD 3-way CrossFireX™ Technology • 8 x USB 3.2 Gen2 ports (7 x Type-A, 1 x Type-C)
• 2 nd and 1 st Gen AMD Ryzen™ with Radeon™ Vega Graphics • 1 x Anti-surge 2.5G LAN (RJ45) port
- Supports AMD 2-way CrossFireX™ Technology • 1 x Anti-surge LAN (RJ45) port
Storage • 3 rd Gen AMD Ryzen™ Processors • 1 x 2 x 2 Wi-Fi module
- 1 x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 • 1 x Optical S/PDIF out
storage devices support (PCIE 4.0 x 4 and SATA modes) • 5 x Gold-plated audio jacks
• 2 nd Gen AMD Ryzen™/2 nd and 1 st Gen AMD Ryzen™ with Internal I/O connectors • 1 x NODE connector
Radeon™ Vega Graphics Processors • 1 x USB 3.2 Gen2 front panel connector
- 1 x M.2 Socket 3 with M Key, Type 2242/2260/2280/22110 • 1 x USB 3.2 Gen1 header supports additional
storage devices support (PCIE 3.0 x 4 and SATA modes) 2 USB 3.2 Gen 1 ports
• AMD X570 Chipset: • 2 x USB 2.0 connectors support additional 4 USB 2.0 ports
- 1 x M.2 socket 3 with M Key, Type 2242/2260/2280/ • 1 x SPI TPM header
22110 (PCIE 4.0 x 4 and SATA modes) storage devices • 8 x SATA 6Gb/s connectors
support • 2 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 Server & Workstation
- 8 x SATA 6.0 Gb/s connectors devices (support PCIE and SATA modes)
- Support Raid 0, 1, 10 • 1 x 4-Pin CPU_FAN connector
LAN • Realtek RTL8125-CG 2.5G LAN • 1 x 4-Pin CPU_OPT fan connector
• Intel® Ethernet Controller I211-AT • 1 x 4-Pin AIO_PUMP connector
• Anti-surge LANGuard • 1 x 4-Pin W_PUMP+ connector
• ROG GameFirst Technology • 2 x 4-Pin CHA_FAN connectors
Wireless Data Network • Intel® Wi-Fi 6 AX200 • 1 x 4-Pin M.2_FAN connector
- 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO • 1 x PCH _FAN connector
supports dual frequency band 2.4/5GHz • 1 x T_ SENSOR connector
Server & Workstation
- Supports channel bandwidth: HT20/HT40/HT80/HT160 • 2 x AURA Addressable Gen2 headers
- Up to 2.4 Gbps transfer speed • 2 x AURA RGB headers
Bluetooth • Bluetooth v5.0 • 1 x 24-pin EATX power connector
Audio • ROG SupremeFX 8-Channel High Definition Audio S1220A • 1 x 8-pin EATX 12V power connector
CODEC • 1 x 4-pin EATX 12V power connector
- Supports up to 32-Bit/192kHz playback* • 1 x System panel connector
- High quality 120 dB SNR stereo playback output and • 1 x Front panel audio connector (AAFP)
113 dB SNR recording input • 1 x Clear CMOS jumper (2-pin)
- Impedance sense for front and rear headphone outputs Accessories • 1 x User guide Mini / Stick PC Mini / Stick PC
- SupremeFX Shielding Technology • 1 x ROG STRIX motherboard support DVD
- Dual Op Amplifiers • 1 x ASUS 2x2 dual band Wi-Fi antenna
- Jack-detection, Multi-streaming, and Front Panel • 1 x 4-in-1 SATA 6Gb/s Cables
Jack-retasking • 1 x 2-in-1 M.2 Screws Package
- Optical S/PDIF out port at back panel • 1 x Extension Cable for RGB strips
• Audio Features: • 1 x Extension Cable for RGB Addressable strips
- Sonic Studio III + Sonic Studio Virtual Mixer • 1 x ROG STRIX door hanger
- Sonic Radar III • 1 x ROG STRIX sticker
- DTS® Sound Unbound • 1 x ROG thank you card
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not • 1 x Thermistor cable
supported for 8-Channel audio. • 1 x cable tie package
USB • 3 rd Gen AMD Ryzen™ Processors • 1 x Cablemod coupon
- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) Software • Overwolf
• 2 nd Gen AMD Ryzen™/2 nd and 1 st Gen AMD Ryzen™ with • Anti-virus software (OEM version)
Radeon™ Vega Graphics Processors • WinRAR Peripherals Peripherals
- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) Form Factor • ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
• AMD X570 chipset
- 1 x USB 3.2 Gen2 front panel connector Note: The specifications are subject to changes without notice.
