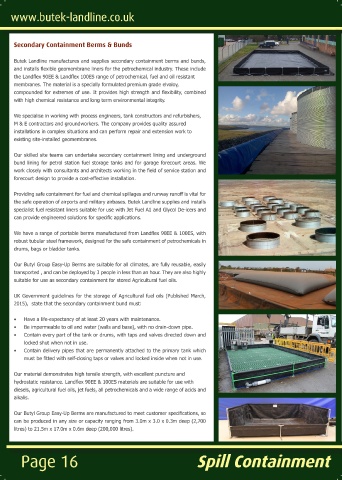

Secondary Containment Berms & Bunds
Butek Landline manufactures and supplies secondary containment berms and bunds,
and installs flexible geomembrane liners for the petrochemical industry. These include
the Landflex 90EE & Landflex 100ES range of petrochemical, fuel and oil resistant
membranes. The material is a specially formulated premium grade elvaloy,
compounded for extremes of use. It provides high strength and flexibility, combined
with high chemical resistance and long term environmental integrity.
We specialise in working with process engineers, tank constructors and refurbishers,
M & E contractors and groundworkers. The company provides quality assured
installations in complex situations and can perform repair and extension work to
existing site-installed geomembranes.
Our skilled site teams can undertake secondary containment lining and underground
bund lining for petrol station fuel storage tanks and for garage forecourt areas. We
work closely with consultants and architects working in the field of service station and
forecourt design to provide a cost-effective installation.
Providing safe containment for fuel and chemical spillages and runway runoff is vital for
the safe operation of airports and military airbases. Butek Landline supplies and installs
specialist fuel resistant liners suitable for use with Jet Fuel A1 and Glycol De-icers and
can provide engineered solutions for specific applications.
We have a range of portable berms manufactured from Landflex 90EE & 100ES, with
robust tubular steel framework, designed for the safe containment of petrochemicals in
drums, bags or bladder tanks.
Our Butyl Group Easy-Up Berms are suitable for all climates, are fully reusable, easily
transported , and can be deployed by 3 people in less than an hour. They are also highly
suitable for use as secondary containment for stored Agricultural fuel oils.
UK Government guidelines for the storage of Agricultural fuel oils (Published March,
2015), state that the secondary containment bund must:
• Have a life-expectancy of at least 20 years with maintenance.
• Be impermeable to oil and water (walls and base), with no drain-down pipe.
• Contain every part of the tank or drums, with taps and valves directed down and
locked shut when not in use.
• Contain delivery pipes that are permanently attached to the primary tank which
must be fitted with self-closing taps or valves and locked inside when not in use.
Our material demonstrates high tensile strength, with excellent puncture and
hydrostatic resistance. Landflex 90EE & 100ES materials are suitable for use with
diesels, agricultural fuel oils, jet fuels, all petrochemicals and a wide range of acids and
alkalis.
Our Butyl Group Easy-Up Berms are manufactured to meet customer specifications, so
can be produced in any size or capacity ranging from 3.0m x 3.0 x 0.3m deep (2,700
litres) to 21.5m x 17.0m x 0.6m deep (200,000 litres).
Page 16 Spill Containment
Liquid Storage Tank Manufacture
As an established water storage tank manufacturer, and preferred supplier across a
wide range of industry sectors for over 4 decades, our tanks are used worldwide for a
variety of applications such as emergency aid, fire water storage, rainwater harvesting,
temporary & remote camps and irrigation supply for agriculture, sports pitch
maintenance and golf courses.
We also provide a range of water storage solutions for festivals and sporting events.
Our original tank design was adopted by Oxfam in the early 1970’s and is now
universally known as the ‘Oxfam Tank’ throughout the Humanitarian Aid
sector. Our tanks versatility coupled with our impressive range of size / capacity options
ensures we have exactly the right iquid storage tank for your requirement, even if your
site is in the harshest of environments.
Our galvanised steel iquid storage tanks are available with capacities ranging from
1,960 litres to 1,212,000 litres.
All tank kits are supplied complete with steels, iquidproof lining, assembly instructions,
tools, accessories, repair kits and roof (if required).
The tanks are ideal where large capacity and depth is required. They can be built on any
firm, flat ground free from debris or a suitable concrete or ring beam base. Designed for
use in all climates, our tanks can typically be erected by three people in around 8 hours.
Our tanks are manufactured using G450 galvanised steel punched and curved to suit
the tank size. Galvanised round headed bolts, washers and nuts are provided to build
the tank to the desired diameter and height. Capping is provided to protect the top
edge of the steel tank.
The linings are manufactured in the form of a cylindrical iquid tight bag sized to suit the
tank, and are offered in a range of materials including Butyl and EPDM rubber. Through
tank outlets are provided in 3″ diameter as standard and can also be offered in other
sizes dependent on customer requirement.
Roof options are available: G600 Galvanised steel with lockable manway for added
security, or PVC, which is more suitable for short term use applications.
All of our tanks are approved to Construction Products Regulation CPR305-211-EU and
are CE marked to EN1090.
A full range of associated spares and accessories are usually available from stock.
