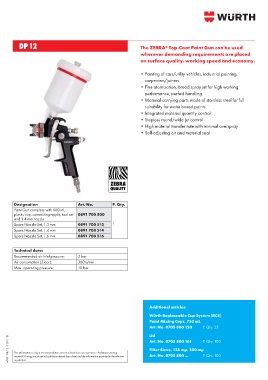

DP 12 The ZEBRA Top-Coat Paint Gun can be used
®
wherever demanding requirements are placed
on surface quality, working speed and economy.

• Painting of cars/utility vehicles, industrial painting,
carpenters/joiners
• Fine atomization, broad spray jet for high working
performance, perfect handling
• Material-carrying parts made of stainless steel for full
suitability for water-based paints
• Integrated material quantity control
• Stepless round/wide jet control
• High material transfer rate with minimal overspray
• Self-adjusting air and material seal

Designation Art. No. P. Qty.
Paint Gun complete with 600 mL
plastic cup, connecting nipple, tool set 0891 700 500
and 1.4 mm nozzle
Spare Nozzle Set, 1.3 mm 0891 700 513 1
Spare Nozzle Set, 1.4 mm 0891 700 514
Spare Nozzle Set, 1.6 mm 0891 700 516

Technical data:
Recommended air inlet pressure: 3 bar
Air consumption (3 bar): 360 L/min
Max. operating pressure: 10 bar

Additional articles:
Würth Replaceable Cup System (RCS)
Paint Mixing Cups, 750 mL
Art. No. 0705 800 120 P. Qty. 25
Lid P. Qty. 100
MWF - 08/12 - 13113 - © This information is only a recommendation, since it is based on our experience. Preliminary testing Filter Sieve, 125 m—, 200 m— P. Qty. 100
Art. No. 0705 800 161

Art. No. 0705 800 …
required! During use, observe both the technical data sheet and the information provided in the relevant
regulations.
