WHEEL ALIGNMENT PROCEDURES

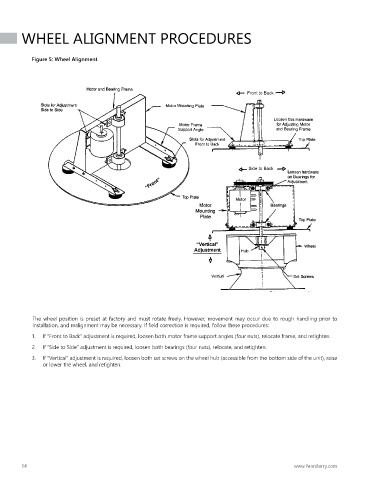

            Figure 5: Wheel Alignment





                                                                                   Front to Back














                                                                                   Side to Back




























            The wheel position is preset at factory and must rotate freely. However, movement may occur due to rough handling prior to
            installation, and realignment may be necessary. If field correction is required, follow these procedures:
            1.   If “Front to Back” adjustment is required, loosen both motor frame support angles (four nuts), relocate frame, and retighten.

            2.  If “Side to Side” adjustment is required, loosen both bearings (four nuts), relocate, and retighten.
            3.  If “Vertical” adjustment is required, loosen both set screws on the wheel hub (accessible from the bottom side of the unit), raise
               or lower the wheel, and retighten.
