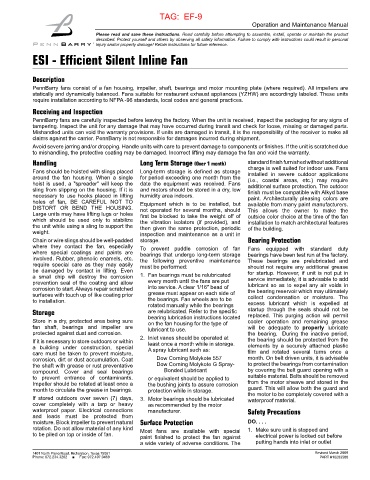

Page 44 - 233423 - Exhaust Fans_Neat

TAG: EF-9
Operation and Maintenance Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product
described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal
injury and/or property damage! Retain instructions for future reference.
ESI - Efficient Silent Inline Fan

Description
PennBarry fans consist of a fan housing, impeller, shaft, bearings and motor mounting plate (where required). All impellers are
statically and dynamically balanced. Fans suitable for restaurant exhaust appliances (YZHW) are accordingly labeled. These units
require installation according to NFPA -96 standards, local codes and general practices.
Receiving and Inspection
PennBarry fans are carefully inspected before leaving the factory. When the unit is received, inspect the packaging for any signs of
tampering. Inspect the unit for any damage that may have occurred during transit and check for loose, missing or damaged parts.
Mishandled units can void the warranty provisions. If units are damaged in transit, it is the responsibility of the receiver to make all
claims against the carrier. PennBarry is not responsible for damages incurred during shipment.
Avoid severe jarring and/or dropping. Handle units with care to prevent damage to components or finishes. If the unit is scratched due
to mishandling, the protective coating may be damaged. Incorrect lifting may damage the fan and void the warranty.
Handling Long Term Storage (Over 1 month) standard finish furnished without additional
Fans should be hoisted with slings placed Long-term storage is defined as storage charge is well suited for indoor use. Fans
installed in severe outdoor applications
around the fan housing. When a single for period exceeding one month from the (i.e., coastal areas, etc.) may require
hoist is used, a "spreader" will keep the date the equipment was received. Fans additional surface protection. The outdoor
sling from slipping on the housing. If it is and motors should be stored in a dry, low finish must be compatible with Alkyd base
necessary to use hooks placed in lifting humidity area indoors. paint. Architecturally pleasing colors are
holes of fan, BE CAREFUL NOT TO Equipment which is to be installed, but available from many paint manufacturers.
DISTORT OR BEND THE HOUSING. not operated for several months, should This allows the owner to make the
Large units may have lifting lugs or holes first be blocked to take the weight off of outside color choice at the time of the fan
which should be used only to stabilize the vibration isolators (if provided), and installation to match architectural features
the unit while using a sling to support the then given the same protection, periodic of the building.
weight. inspection and maintenance as a unit in
Chain or wire slings should be well-padded storage. Bearing Protection
where they contact the fan, especially To prevent puddle corrosion of fan Fans equipped with standard duty
where special coatings and paints are bearings that undergo long-term storage bearings have been test run at the factory.
involved. Rubber, phenolic enamels, etc. the following preventive maintenance These bearings are prelubricated and
require special care as they may easily must be performed: should not require any additional grease
be damaged by contact in lifting. Even for startup. However, if unit is not put in
a small chip will destroy the corrosion 1. Fan bearings must be relubricated service immediately, it is advisable to add
prevention seal of the coating and allow every month until the fans are put lubricant so as to expel any air voids in
corrosion to start. Always repair scratched into service. A clear 1/16" bead of the bearing reservoir which may ultimately
surfaces with touch up of like coating prior grease must appear on each side of collect condensation or moisture. The
to installation. the bearings. Fan wheels are to be
rotated manually while the bearings excess lubricant which is expelled at
Storage are relubricated. Refer to the specific startup through the seals should not be
replaced. This purging action will permit
Store in a dry, protected area being sure bearing lubrication instructions located cooler operation and remaining grease
on the fan housing for the type of
fan shaft, bearings and impeller are lubricant to use. will be adequate to properly lubricate
protected against dust and corrosion. the bearing. During the inactive period,
If it is necessary to store outdoors or within 2. Inlet vanes should be operated at the bearing should be protected from the
least once a month while in storage.
a building under construction, special A spray lubricant such as: elements by a securely attached plastic
care must be taken to prevent moisture, film and rotated several turns once a
corrosion, dirt or dust accumulation. Coat Dow Corning Molykote 557 month. On belt driven units, it is advisable
the shaft with grease or rust preventative Dow Corning Molykote G Spray- to protect the bearings from contamination
compound. Cover and seal bearings Bonded Lubricant by covering the belt guard opening with a
to prevent entrance of contaminants. or equivalent should be applied to suitable material. Belts should be removed
Impeller should be rotated at least once a the bushing joints to assure corrosion from the motor sheave and stored in the
month to circulate the grease in bearings. protection while in storage. guard. This will allow both the guard and
If stored outdoors over seven (7) days, 3. Motor bearings should be lubricated the motor to be completely covered with a
waterproof material.
cover completely with a tarp or heavy as recommended by the motor
waterproof paper. Electrical connections manufacturer. Safety Precautions
and leads must be protected from
moisture. Block impeller to prevent natural Surface Protection DO. . . .
rotation. Do not allow material of any kind Most fans are available with special 1. Make sure unit is stopped and
to be piled on top or inside of fan. paint finished to protect the fan against electrical power is locked out before
a wide variety of adverse conditions. The putting hands into inlet or outlet
