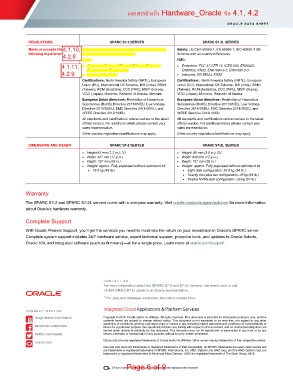

Page 297 - เอกสารตรวจรับระบบ dr site

เอกสารอ้างอิง Hardware_Oracle ข้อ 4.1, 4.2

O R A C L E D A T A S H E E T

REGULATIONS SPARC S7-2 SERVER SPARC S7-2L SERVER
Meets or exceeds the 4.1.10, Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB Safety: UL/CSA 60950-1, EN 60950-1, IEC 60950-1 CB
following requirements Scheme with all country differences Scheme with all country differences
4.2.8
EMC: EMC:
4.1.11,  Emissions: FCC 47 CFR 15, ICES-003, EN55022,  Emissions: FCC 47 CFR 15, ICES-003, EN55022,
EN61000-3-2, EN61000-3-3 EN55032, KN32, EN61000-3-2, EN61000-3-3
4.2.9  Immunity: EN 55024  Immunity: EN 55024, KN35
Certifications: North America Safety (NRTL), European Certifications: North America Safety (NRTL), European
Union (EU), International CB Scheme, BIS (India), BSMI Union (EU), International CB Scheme, BIS (India), BSMI
(Taiwan), RCM (Australia), CCC (PRC), MSIP (Korea), (Taiwan), RCM (Australia), CCC (PRC), MSIP (Korea),
VCCI (Japan), Morocco, Republic of Srpska, Vietnam. VCCI (Japan), Morocco, Republic of Srpska.
European Union directives: Restriction of Hazardous European Union directives: Restriction of Hazardous
Substances (RoHS) Directive 2011/65/EU, Low Voltage Substances (RoHS) Directive 2011/65/EU, Low Voltage
Directive 2014/35/EU, EMC Directive 2014/30/EU, and Directive 2014/35/EU, EMC Directive 2014/30/EU, and
WEEE Directive 2012/19/EU WEEE Directive 2012/19/EU
All standards and certifications referenced are to the latest All standards and certifications referenced are to the latest
official version. For additional detail, please contact your official version. For additional detail, please contact your
sales representative. sales representative.
Other country regulations/certifications may apply. Other country regulations/certifications may apply.

DIMENSIONS AND WEIGHT SPARC S7-2 SERVER SPARC S7-2L SERVER
 Height:43 mm (1.7 in.); 1U  Height: 88 mm (3.5 in.); 2U
 Width: 437 mm (17.2 in.)  Width: 436 mm (17.2 in.)
 Depth: 737 mm (29 in.)  Depth: 737 mm (29 in.)
 Weight: approx. Fully populated without rackmount kit  Weight: approx. Fully populated without rackmount kit
 19.5 kg (43 lb.)  Eight-disk configuration: 24.5 kg (54 lb.)
 Twenty-four plus two configuration: 29 kg (64 lb.)
 Twelve NVMe-disk configuration: 26 kg (57 lb.)

Warranty
The SPARC S7-2 and SPARC S7-2L servers come with a one-year warranty. Visit oracle.com/us/support/policies/ for more information
about Oracle's hardware warranty.

Complete Support
With Oracle Premier Support, you’ll get the services you need to maximize the return on your investment in Oracle's SPARC server.
Complete system support includes 24/7 hardware service, expert technical support, proactive tools, and updates to Oracle Solaris,
Oracle VM, and integrated software (such as firmware)—all for a single price. Learn more at oracle.com/support.

C O N T A C T U S
For more information about the SPARC S7-2 and S7-2L servers, visit oracle.com or call
+1.800.ORACLE1 to speak to an Oracle representative.

1 For Java and database workloads, at product release time.

C O N N E C T W I T H U S

blogs.oracle.com/oracle Copyright © 2018, Oracle and/or its affiliates. All rights reserved. This document is provided for information purposes only, and the
contents hereof are subject to change without notice. This document is not warranted to be error-free, nor subject to any other
warranties or conditions, whether expressed orally or implied in law, including implied warranties and conditions of merchantability or
facebook.com/oracle fitness for a particular purpose. We specifically disclaim any liability with respect to this document, and no contractual obligations are
formed either directly or indirectly by this document. This document may not be reproduced or transmitted in any form or by any
twitter.com/oracle means, electronic or mechanical, for any purpose, without our prior written permission.

Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of their respective owners.
oracle.com
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and
are trademarks or registered trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are
trademarks or registered trademarks of Advanced Micro Devices. UNIX is a registered trademark of The Open Group. 0618
6 | SPARC S7-2 AND SPARC S7-2L SERVERS

Page 6 of 9
