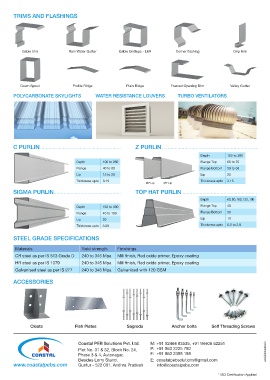

Page 4 - Coastal Brochure 4pg Print
P. 4

TRIMS AND FLASHINGS








          Gable trim          Rain Water Gutter     Gable Endlaps - L&R     Corner flashing          Drip trim







          Down Spout            Profile Ridge          Plain Ridge        Framed Opening Trim      Valley Gutter

       POLYCARBONATE SKYLIGHTS            WATER RESISTANCE LOUVERS           TURBO VENTILATORS











       C PURLIN                                            Z PURLIN

                                                                                       Depth      180 to 300
                                  Depth      100 to 250                                Flange Top  65 to 75
                                  Flange     40 to 80                                  Flange Bottom  59 to 69
                                  Lip        15 to 20                                  Lip        20
                                  Thickness upto  3.15                                 Thickness upto  3.15
                                                               90 o  Lip  45 o  Lip
       SIGMA PURLIN                                        TOP HAT PURLIN

                                                                                       Depth      60, 80, 100, 120, 180
                                  Depth      150 to 400                                Flange Top  40
                                  Flange     40 to 100                                 Flange Bottom  30
                                  Lip        20                                        Lip        10
                                  Thickness upto  3.50                                 Thickness upto  0.8 to 2.0

       STEEL GRADE SPECIFICATIONS

        Materials                   Yield strength  Finishings
        CR steel as per IS 513 Grade D  240 to 345 Mpa  Mill finish, Red oxide primer, Epoxy coating
        HR steel as per IS 1079     240 to 345 Mpa  Mill finish, Red oxide primer, Epoxy coating
        Galvanised steel as per IS 277  240 to 345 Mpa  Galvanized with 120 GSM

       ACCESSORIES










              Cleats             Fish Plates           Sagrods            Anchor bolts     Self Threading Screws



                                  Coastal PEB Solutions Pvt. Ltd.  M: +91 92464 83535, +91 94406 52251
                                  Plot No. 31 & 32, Block No. 24,   P:  +91 863 2225 793
                                  Phase 3 & 4, Autonagar,        F:  +91 863 2355 158                             www.jirehcreative.in
                                  Besides Lorry Stand,           E:  coastalpebsolutions@gmail.com
       www.coastalpebs.com        Guntur - 522 001. Andhra Pradesh  info@coastalpebs.com

                                                                                              * ISO Certification Applied
