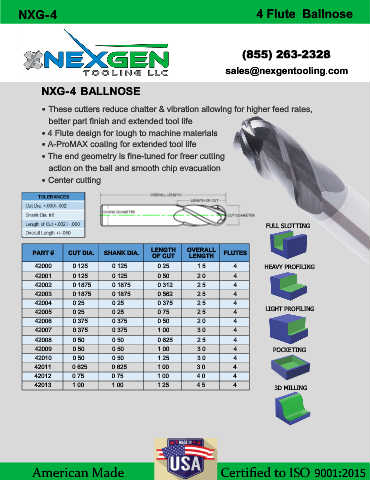

Page 6 - 2021 NEXGEN TOOLING CATALOG

NXG-4 4 Flute Ballnose

(855) 263-2328

sales@nexgentooling.com

NXG-4 BALLNOSE

• These cutters reduce chatter & vibration allowing for higher feed rates,
better part finish and extended tool life
• 4 Flute design for tough to machine materials

• A-ProMAX coating for extended tool life
• The end geometry is fine-tuned for freer cutting

action on the ball and smooth chip evacuation
• Center cutting

FULL SLOTTING

LENGTH OVERALL
PART # CUT DIA. SHANK DIA. FLUTES
OF CUT LENGTH
42000 0.125 0.125 0.25 1.5 4 HEAVY PROFILING
42001 0.125 0.125 0.50 2.0 4
42002 0.1875 0.1875 0.312 2.5 4
42003 0.1875 0.1875 0.562 2.5 4
42004 0.25 0.25 0.375 2.5 4
42005 0.25 0.25 0.75 2.5 4 LIGHT PROFILING
42006 0.375 0.375 0.50 2.0 4
42007 0.375 0.375 1.00 3.0 4
42008 0.50 0.50 0.625 2.5 4
42009 0.50 0.50 1.00 3.0 4 POCKETING
42010 0.50 0.50 1.25 3.0 4
42011 0.625 0.625 1.00 3.0 4 Consulting
42012 0.75 0.75 1.00 4.0 4
42013 1.00 1.00 1.25 4.5 4 3D MILLING Sales

Staffing

Support

simplifying IT
American Made Certified to ISO 9001:2015
