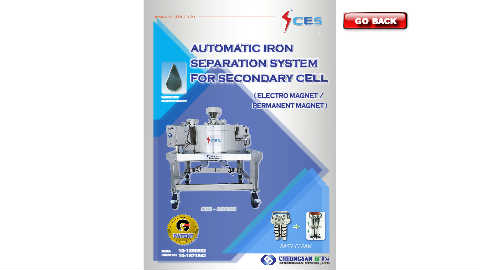

Page 389 - B2B all year round_UPDATE 5
P. 389
SCREEN
Fe(lron)
screen materials
Conceptual Separation
by Electro Magnet
CES - DRY TYPE
ELECTRICITY OIL COOLING
MODEL LINE SIZE GAUSS(MAX) (KW) TYPE WEIGHT (Kg)
CES - 100 Ø114 12,000 11.5 2,450
WATER COOLED
CES - 150 Ø165 12,000 17.5 TYPE 2,650
CES - 200 Ø216 20,000 22.5 ( AIR COOLED 2,850
TYPE )
CES - 250 Ø265 20,000 25 3,100
The Fine particles of ferro magnetic material (Fe) and The para magnetic materials (STS,INCONEL)
in the active material powder (Cathod & Anode material) , as a majpr material of secondary cell,
are automatically filtered by electro magnetized screen, Finally The High Quality Material is achieved
by this system.
Improvement of work efficiency through the monitoring parameters (Volt,Amp,Temp, Pressure,
Working time , Flowrate ) for working electro magnet.
