P. 6

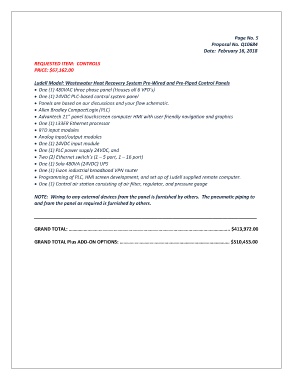

Page No. 5
Proposal No. Q10684
Date: February 16, 2018
REQUESTED ITEM: CONTROLS
PRICE: $67,162.00
Ludell Model: Wastewater Heat Recovery System Pre-Wired and Pre-Piped Control Panels
• One (1) 480VAC three phase panel (Houses all 6 VFD’s)
• One (1) 24VDC PLC-based control system panel
• Panels are based on our discussions and your flow schematic.
• Allen Bradley CompactLogix (PLC)
• Advantech 21” panel touchscreen computer HMI with user friendly navigation and graphics
• One (1) L33ER Ethernet processor
• RTD input modules
• Analog input/output modules
• One (1) 24VDC input module
• One (1) PLC power supply 24VDC, and
• Two (2) Ethernet switch’s (1 – 5 port, 1 – 16 port)
• One (1) Sola 480VA (24VDC) UPS
• One (1) Ewon industrial broadband VPN router
• Programming of PLC, HMI screen development, and set up of Ludell supplied remote computer.
• One (1) Control air station consisting of air filter, regulator, and pressure gauge
NOTE: Wiring to any external devices from the panel is furnished by others. The pneumatic piping to
and from the panel as required is furnished by others.
_____________________________________________________________________________________
GRAND TOTAL: ………………………………………………………………………………………………………………... $413,972.00
GRAND TOTAL Plus ADD-ON OPTIONS: ……………………………………………………………………………. $510,453.00
