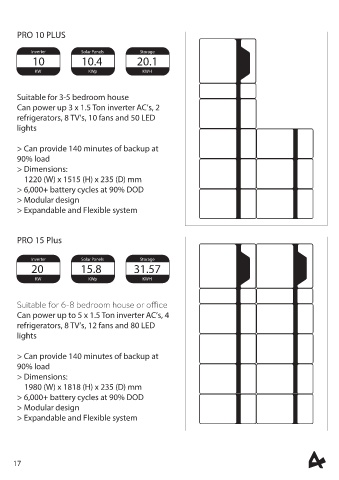

Page 18 - CatalougeNew27july19

PRO 10 PLUS

Inverter Solar Panels Storage
10 10.4 20.1

KW KWp KWH

Suitable for 3-5 bedroom house
Can power up 3 x 1.5 Ton inverter AC’s, 2

refrigerators, 8 TV’s, 10 fans and 50 LED
lights

> Can provide 140 minutes of backup at

90% load
> Dimensions:
1220 (W) x 1515 (H) x 235 (D) mm
> 6,000+ battery cycles at 90% DOD

> Modular design
> Expandable and Flexible system

PRO 15 Plus

Inverter Solar Panels Storage
20 15.8 31.57

KW KWp KWH

Can power up to 5 x 1.5 Ton inverter AC’s, 4
refrigerators, 8 TV’s, 12 fans and 80 LED
lights

> Can provide 140 minutes of backup at
90% load
> Dimensions:

1980 (W) x 1818 (H) x 235 (D) mm
> 6,000+ battery cycles at 90% DOD
> Modular design
> Expandable and Flexible system

17
