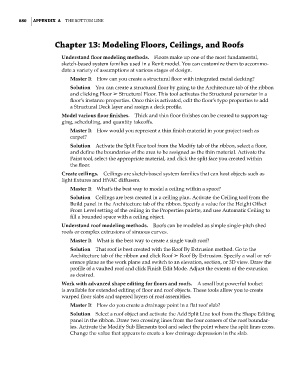

880   |  AppendIx  A  The BoTTom Line



                           Chapter 13: Modeling Floors, Ceilings, and Roofs

                             Understand floor modeling methods.    Floors make up one of the most fundamental,
                             sketch-based system families used in a Revit model. You can customize them to accommo-
                             date a variety of assumptions at various stages of design.
                                Master It    How can you create a structural floor with integrated metal decking?
                                Solution    You can create a structural floor by going to the Architecture tab of the ribbon
                                and clicking Floor ➢ Structural Floor. This tool activates the Structural parameter in a
                                floor’s instance properties. Once this is activated, edit the floor’s type properties to add
                                a Structural Deck layer and assign a deck profile.
                             Model various floor finishes.    Thick and thin floor finishes can be created to support tag-
                             ging, scheduling, and quantity takeoffs.
                                Master It    How would you represent a thin finish material in your project such as
                                carpet?
                                Solution    Activate the Split Face tool from the Modify tab of the ribbon, select a floor,
                                and define the boundaries of the area to be assigned as the thin material. Activate the
                                Paint tool, select the appropriate material, and click the split face you created within
                                the floor.
                             Create ceilings.    Ceilings are sketch-based system families that can host objects such as
                             light fixtures and HVAC diffusers.
                                Master It    What’s the best way to model a ceiling within a space?
                                Solution    Ceilings are best created in a ceiling plan. Activate the Ceiling tool from the
                                Build panel in the Architecture tab of the ribbon. Specify a value for the Height Offset
                                From Level setting of the ceiling in the Properties palette, and use Automatic Ceiling to
                                fill a bounded space with a ceiling object.
                             Understand roof modeling methods.    Roofs can be modeled as simple single-pitch shed
                             roofs or complex extrusions of sinuous curves.
                                Master It    What is the best way to create a single vault roof?
                                Solution    That roof is best created with the Roof By Extrusion method. Go to the
                                Architecture tab of the ribbon and click Roof ➢ Roof By Extrusion. Specify a wall or ref-
                                erence plane as the work plane and switch to an elevation, section, or 3D view. Draw the
                                profile of a vaulted roof and click Finish Edit Mode. Adjust the extents of the extrusion
                                as desired.
                             Work with advanced shape editing for floors and roofs.    A small but powerful toolset
                             is available for extended editing of floor and roof objects. These tools allow you to create
                             warped floor slabs and tapered layers of roof assemblies.
                                Master It    How do you create a drainage point in a flat roof slab?
                                Solution    Select a roof object and activate the Add Split Line tool from the Shape Editing
                                panel in the ribbon. Draw two crossing lines from the four corners of the roof boundar-
                                ies. Activate the Modify Sub Elements tool and select the point where the split lines cross.
                                Change the value that appears to create a low drainage depression in the slab.
