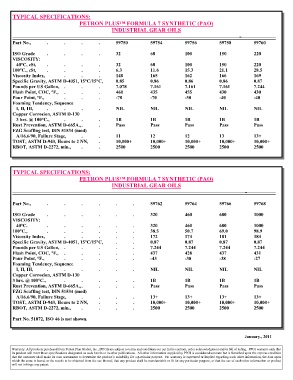

Page 118 - Petron Plus with Price List

TYPICAL SPECIFICATIONS:
PETRON PLUS™ FORMULA 7 SYNTHETIC (PAO)
INDUSTRIAL GEAR OILS
———————————————————————————————————–————-——————
Part No., . . . . 59750 59754 59756 59758 59760

ISO Grade . . . . 32 68 100 150 220
VISCOSITY:
40°C, cSt, . . . . 32 68 100 150 220
100°C., cSt, . . . . 6.3 11.6 15.3 21.1 28.5
Viscosity Index, . . . 148 165 162 166 169
Specific Gravity, ASTM D-4051, 15°C/15°C, 0.85 0.86 0.86 0.86 0.87
Pounds per US Gallon, . . . 7.078 7.161 7.161 7.161 7.244
Flash Point, COC, °F., . . . 460 435 455 430 430
Pour Point, °F., . . . -70 -70 -50 -40 -40
Foaming Tendency, Sequence
I, II, III, . . . . NIL NIL NIL NIL NIL
Copper Corrosion, ASTM D-130
3 hrs. @ 100°C., . . . 1B 1B 1B 1B 1B
Rust Prevention, ASTM D-665A., . . Pass Pass Pass Pass Pass
FZG Scuffing test, DIN 51534 (mod)
A/16.6/90, Failure Stage, . . 11 12 12 13 13+
TOST, ASTM D-943, Hours to 2 NN, . 10,000+ 10,000+ 10,000+ 10,000+ 10,000+
RBOT, ASTM D-2272, min., . . 2500 2500 2500 2500 2500

TYPICAL SPECIFICATIONS:
PETRON PLUS™ FORMULA 7 SYNTHETIC (PAO)
INDUSTRIAL GEAR OILS
————————————————————————————————————–————-—————

Part No., . . . . . . 59762 59764 59766 59768

ISO Grade . . . . . . 320 460 680 1000
VISCOSITY:
40°C. . . . . . . 320 460 680 1000
100°C., . . . . . . 38.5 50.7 69.0 98.9
Viscosity Index, . . . . . 172 174 181 184
Specific Gravity, ASTM D-4051, 15°C/15°C, . . 0.87 0.87 0.87 0.87
Pounds per US Gallon, . . . . . 7.244 7.244 7.244 7.244
Flash Point, COC, °F., . . . . . 437 428 437 431
Pour Point, °F., . . . . . -43 -38 -38 -27
Foaming Tendency, Sequence
I, II, III, . . . . . . NIL NIL NIL NIL
Copper Corrosion, ASTM D-130
3 hrs. @ 100°C., . . . . . 1B 1B 1B 1B
Rust Prevention, ASTM D-665A., . . . . Pass Pass Pass Pass
FZG Scuffing test, DIN 51534 (mod)
A/16.6/90, Failure Stage, . . . . 13+ 13+ 13+ 13+
TOST, ASTM D-943, Hours to 2 NN, . . . 10,000+ 10,000+ 10,000+ 10,000+
RBOT, ASTM D-2272, min., . . . . 2500 2500 2500 2500

Part No. 51072, ISO 46 is not shown.

January., 2011

Warranty: All products purchased from Petron Plus Global, Inc., (PPGI) are subject to terms and conditions set out in the contract, order acknowledgment and/or bill of lading. PPGI warrants only that
its product will meet those specifications designated as such herein or in other publications. All other information supplied by PPGI is considered accurate but is furnished upon the express condition
that the customer shall make its own assessment to determine the product’s suitability for a particular purpose. No warranty is expressed or implied regarding such other information, the data upon
which the same is based, or the results to be obtained from the use thereof; that any product shall be merchantable or fit for any particular purpose, or that the use of such other information or product
will not infringe any patent.
