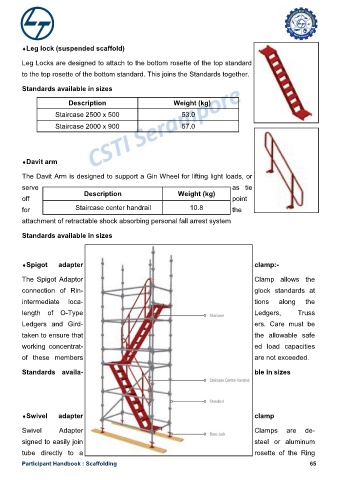

Leg lock (suspended scaffold)

Leg Locks are designed to attach to the bottom rosette of the top standard
to the top rosette of the bottom standard. This joins the Standards together.

Standards available in sizes

Description Weight (kg)
Staircase 2500 x 500 53.0

Staircase 2000 x 900 57.0

Davit arm

The Davit Arm is designed to support a Gin Wheel for lifting light loads, or
serve as tie
Description Weight (kg)
off point
for Staircase center handrail 10.8 the

attachment of retractable shock absorbing personal fall arrest system

Standards available in sizes

Spigot adapter clamp:-

The Spigot Adaptor Clamp allows the

connection of Rin- glock standards at
intermediate loca- tions along the

length of O-Type Ledgers, Truss
Ledgers and Gird- ers. Care must be

taken to ensure that the allowable safe
working concentrat- ed load capacities

of these members are not exceeded.

Standards availa- ble in sizes

Swivel adapter clamp

Swivel Adapter Clamps are de-
signed to easily join steel or aluminum
tube directly to a rosette of the Ring
