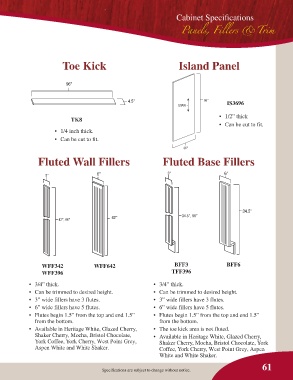

Page 61 - FPI cabinets

Cabinet Specifications

Panels, Fillers &Trim

Toe Kick Island Panel

IS3696

• 1/2” thick
TK8
• Can be cut to fit.
• 1/4 inch thick.
• Can be cut to fit.

Fluted Wall Fillers Fluted Base Fillers

WFF342 WFF642 BFF3 BFF6
WFF396 TFF396

• 3/4” thick. • 3/4” thick.
• Can be trimmed to desired height. • Can be trimmed to desired height.
• 3” wide fillers have 3 flutes. • 3” wide fillers have 3 flutes.
• 6” wide fillers have 5 flutes. • 6” wide fillers have 5 flutes.
• Flutes begin 1.5” from the top and end 1.5” • Flutes begin 1.5” from the top and end 1.5”
from the bottom. from the bottom.
• Available in Heritage White, Glazed Cherry, • The toe kick area is not fluted.
Shaker Cherry, Mocha, Bristol Chocolate, • Available in Heritage White, Glazed Cherry,
York Coffee, York Cherry, West Point Grey, Shaker Cherry, Mocha, Bristol Chocolate, York
Aspen White and White Shaker. Coffee, York Cherry, West Point Grey, Aspen
White and White Shaker.
61
Specifications are subject to change without notice.
