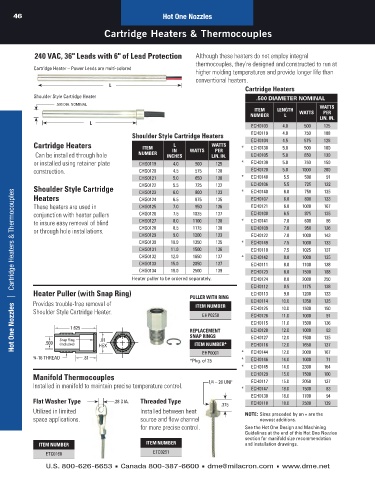

Page 48 - Hot Runner & Control Systems 2020

36 46 Hot One Nozzles

Cartridge Heaters & Thermocouples

240 VAC, 36" Leads with 6" of Lead Protection Although these heaters do not employ integral
thermocouples, they’re designed and constructed to run at
Cartridge Heater – Power Leads are multi-colored
higher molding temperatures and provide longer life than
conventional heaters.
L
Cartridge Heaters
Shoulder Style Cartridge Heater .500 DIAMETER NOMINAL
.500 DIA. NOMINAL WATTS
ITEM LENGTH WATTS PER
NUMBER L LIN. IN.
L
ECH0103 4.0 500 125
Shoulder Style Cartridge Heaters ECH0119 4.0 750 188
Cartridge Heaters ITEM L WATTS * ECH0104 4.5 575 128
ECH0138
500
5.0
100
IN
PER
Can be installed through hole NUMBER INCHES WATTS LIN. IN. ECH0105 5.0 650 130
or installed using retainer plate CHS0119 4.0 500 125 * ECH0139 5.0 750 150
construction. CHS0120 4.5 575 128 ECH0120 5.0 1000 200
CHS0121 5.0 650 130 * ECH0148 5.5 500 91
Shoulder Style Cartridge CHS0122 5.5 725 132 * ECH0106 5.5 725 132
6.0
125
750
ECH0140
6.0
Hot One Nozzles | Cartridge Heaters & Thermocouples
CHS0123
800
133
Heaters CHS0124 6.5 875 135 ECH0107 6.0 800 133
These heaters are used in CHS0125 7.0 950 136 ECH0121 6.0 1000 167
conjunction with heater pullers CHS0126 7.5 1025 137 ECH0108 6.5 875 135
Custom Hot Runner Systems | Index
to insure easy removal of blind CHS0127 8.0 1100 138 * ECH0141 7.0 600 86
or through hole installations. CHS0128 8.5 1175 138 ECH0109 7.0 950 136
CHS0129 9.0 1200 133 ECH0122 7.0 1000 143
CHS0130 10.0 1350 135 * ECH0149 7.5 1000 133
CHS0131 11.0 1500 136 ECH0110 7.5 1025 137
CHS0132 12.0 1650 137 * ECH0142 8.0 1000 125
CHS0133 15.0 2050 137 ECH0111 8.0 1100 138
CHS0134 18.0 2500 139 ECH0123 8.0 1500 188
Heater puller to be ordered separately. ECH0124 8.0 2000 250
ECH0112 8.5 1175 138
Heater Puller (with Snap Ring) ECH0113 9.0 1200 133
PULLER WITH RING
Provides trouble-free removal of ITEM NUMBER ECH0114 10.0 1350 135
Shoulder Style Cartridge Heater. ECH0125 10.0 1500 150
EHP0250 ECH0126 11.0 1000 91
ECH0115 11.0 1500 136
1.625
REPLACEMENT ECH0128 12.0 1000 83
SNAP RINGS ECH0127 12.0 1500 125
Snap Ring .81
.500 (Included) HEX ITEM NUMBER* ECH0116 12.0 1650 137
EHP0001 * ECH0144 12.0 2000 167
¾-16 THREAD .81
*Pkg. of 25 * ECH0146 14.0 1000 71
REPLACEMENT SNAP RINGS * ECH0145 14.0 2300 164
Manifold Thermocouples ECH0129 15.0 1500 100
Installed in manifold to maintain precise temperature control. 1/4 – 28 UNF * ECH0117 15.0 2050 137
18.0
ECH0147
1500
83
ECH0130 18.0 1700 94
Flat Washer Type .28 DIA. Threaded Type ECH0118 18.0 2500 139
.375
Utilized in limited Installed between heat NOTE: Sizes preceded by an are the
space applications. source and flow channel newest additions. *
for more precise control. See the Hot One Design and Machining
Guidelines at the end of this Hot One Nozzles
section for manifold size recommendation
ITEM NUMBER ITEM NUMBER and installation drawings.
ETC0168 ETC0251
U.S. 800-626-6653  Canada 800-387-6600  dme@milacron.com  www.dme.net
