General Security Concepts: Access Control, Authentication, and Auditing • Chapter 1 19

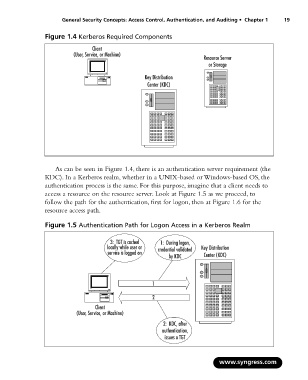

Figure 1.4 Kerberos Required Components
Client
(User, Service, or Machine)
Resource Server
or Storage
Key Distribution
Center (KDC)

As can be seen in Figure 1.4, there is an authentication server requirement (the
KDC). In a Kerberos realm, whether in a UNIX-based or Windows-based OS, the
authentication process is the same. For this purpose, imagine that a client needs to
access a resource on the resource server. Look at Figure 1.5 as we proceed, to
follow the path for the authentication, first for logon, then at Figure 1.6 for the
resource access path.

Figure 1.5 Authentication Path for Logon Access in a Kerberos Realm

3: TGT is cached 1: During logon,
locally while user or credential validated Key Distribution
service is logged on
by KDC Center (KDC)

1
2

Client
(User, Service, or Machine)
2: KDC, after
authentication,
issues a TGT
