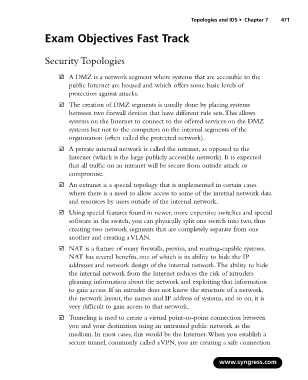

Topologies and IDS • Chapter 7 471

Exam Objectives Fast Track

Security Topologies

A DMZ is a network segment where systems that are accessible to the
public Internet are housed and which offers some basic levels of
protection against attacks.
The creation of DMZ segments is usually done by placing systems
between two firewall devices that have different rule sets.This allows
systems on the Internet to connect to the offered services on the DMZ
systems but not to the computers on the internal segments of the
organization (often called the protected network).
A private internal network is called the intranet, as opposed to the
Internet (which is the large publicly accessible network). It is expected
that all traffic on an intranet will be secure from outside attack or
compromise.
An extranet is a special topology that is implemented in certain cases
where there is a need to allow access to some of the internal network data
and resources by users outside of the internal network.
Using special features found in newer, more expensive switches and special
software in the switch, you can physically split one switch into two, thus
creating two network segments that are completely separate from one
another and creating a VLAN.

NAT is a feature of many firewalls, proxies, and routing-capable systems.
NAT has several benefits, one of which is its ability to hide the IP
addresses and network design of the internal network.The ability to hide
the internal network from the Internet reduces the risk of intruders
gleaning information about the network and exploiting that information
to gain access. If an intruder does not know the structure of a network,
the network layout, the names and IP address of systems, and so on, it is
very difficult to gain access to that network.

Tunneling is used to create a virtual point-to-point connection between
you and your destination using an untrusted public network as the
medium. In most cases, this would be the Internet.When you establish a
secure tunnel, commonly called a VPN, you are creating a safe connection
