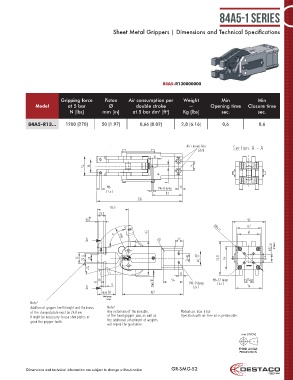

Page 52 - Destaco - Sheet Metal Grippers
P. 52
84A5-1 Series
Sheet Metal Grippers | Dimensions and Technical Specifications
84A5-R130000000
Gripping force Piston Air consumption per Weight Min Min
Model at 5 bar Ø double stroke ~ Opening time Closure time
N [lbs] mm [in] at 5 bar dm [ft ] Kg [lbs] sec. sec.
3
3
84A5-R13... 1200 [270] 50 [1.97] 0,66 [0.02] 2,8 [6.16] 0,6 0,6
mm [INCH] mm [INCH]
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice GR-SMG-52
