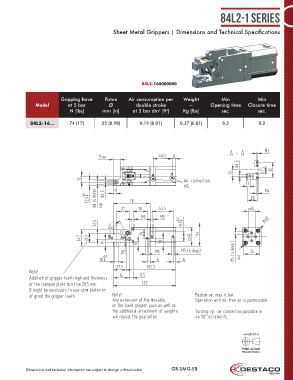

84L2-1 Series
Sheet Metal Grippers | Dimensions and Technical Specifications
84L2-160000000
Gripping force Piston Air consumption per Weight Min Min
Model at 5 bar Ø double stroke ~ Opening time Closure time
N [lbs] mm [in] at 5 bar dm [ft ] Kg [lbs] sec. sec.
3
3
84L2-16... 74 [17] 25 [0.98] 0,19 [0.01] 0,37 [0.81] 0,2 0,2
mm [INCH] mm [INCH]
THIRD ANGLE FIRST ANGLE
PROJECTION PROJECTION
Dimensions and technical information are subject to change without notice GR-SMG-58
