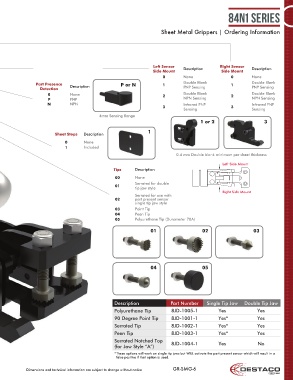

P. 6
84N1 Series
Sheet Metal Grippers | Ordering Information
Left Sensor Description Right Sensor Description
Side Mount Side Mount
0 None 0 None
Part Presence Description P or N 1 Double Blank 1 Double Blank
Detection PNP Sensing PNP Sensing
0 None 2 Double Blank 2 Double Blank
P PNP NPN Sensing NPN Sensing
N NPN Infrared PNP Infrared PNP
3 Sensing 3 Sensing
4mm Sensing Range
1 or 2 3
1
Sheet Stops Description
0 None
1 Included
0.4 mm Double blank minimum per sheet thickness
Left Side Mount
Tips Description
00 None
Serrated for double
01
tip jaw style
Right Side Mount
Serrated for use with
02 part present sensor
single tip jaw style
03 Point Tip
04 Peen Tip
05 Polyurethane Tip (Durometer 70A)
01 02 03
05
04 05
Description Part Number Single Tip Jaw Double Tip Jaw
Polyurethane Tip 8JD-1005-1 Yes Yes
90 Degree Point Tip 8JD-1001-1 Yes* Yes
Serrated Tip 8JD-1002-1 Yes* Yes
Peen Tip 8JD-1003-1 Yes* Yes
Serrated Notched Top 8JD-1004-1 Yes No
(for Jaw Style “A”)
* These options will work on single tip jaws but WILL activate the part present sensor which will result in a
false positive if that option is used.
Dimensions and technical information are subject to change without notice GR-SMG-6
