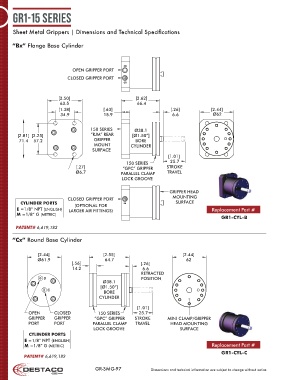

Page 97 - Destaco - Sheet Metal Grippers

GR1-15 Series

Sheet Metal Grippers | Dimensions and Technical Specifications

“Bx” Flange Base Cylinder

OPEN GRIPPER PORT
CLOSED GRIPPER PORT

[2.50] [2.62]
63.5 66.4
[1.38] [.63] [.26] [2.44]
34.9 15.9 6.6 Ø62

150 SERIES Ø38.1
[2.81] [2.25] “RJM” REAR [Ø1.50”]
71.4 57.2 GRIPPER BORE
MOUNT CYLINDER
SURFACE
[1.01]
150 SERIES 25.7
[.27] “GPC” GRIPPER STROKE
Ø6.7 PARALLEL CLAMP TRAVEL
LOCK GROOVE

GRIPPER HEAD
CLOSED GRIPPER PORT MOUNTING
CYLINDER PORTS (OPTIONAL FOR SURFACE
E =1/8” NPT (ENGLISH) LARGER AIR FITTINGS) Replacement Part #
M =1/8” G (METRIC)
GR1-CYL-B

PATENT# 6,619,182

“Cx” Round Base Cylinder

[2.44] [2.55] [2.44]
Ø61.9 64.7 62
[.56] [.26]
14.2 6.6
RETRACTED
POSITION
Ø38.1
[Ø1.50”]
BORE
CYLINDER

[1.01]
OPEN CLOSED 150 SERIES 25.7
GRIPPER GRIPPER “GPC” GRIPPER STROKE MINI CLAMP/GRIPPER
PORT PORT PARALLEL CLAMP TRAVEL HEAD MOUNTING
LOCK GROOVE SURFACE
CYLINDER PORTS
E =1/8” NPT (ENGLISH)
M =1/8” G (METRIC) Replacement Part #
GR1-CYL-C
PATENT# 6,619,182

GR-SMG-97 Dimensions and technical information are subject to change without notice
