Ergonomic and Efficient Handling Solutions Vacuum Tube Lifters Jumbo Vacuum Lifting Devices VacuMaster Aluminum Crane Systems

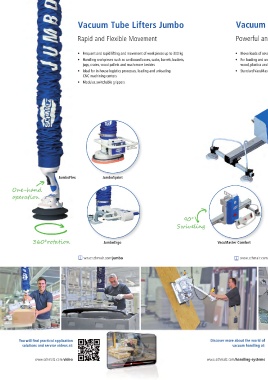

Handle Tough Tasks with Ease Rapid and Flexible Movement Powerful and Versatile Handling As a supplement or standalone system

• Frequent and rapid lifting and movement of workpieces up to 300 kg • Move loads of several tons safely and ergonomically • Customizable and perfectly designed crane systems for loads of up to 1,200 kg
• Handling workpieces such as cardboard boxes, sacks, barrels, buckets, • For loading and unloading CNC machining centers in the sheet metal, and jib cranes for loads of up to 1,000 kg
jugs, crates, wood pallets and much more besides wood, plastics and glass processing industry • An ideal supplement to the vacuum lifters or as a standalone system solution
• Ideal for in-house logistics processes, loading and unloading • Standard VacuMaster range available for loads of up to 2,000 kg • Innovative crane system with highly responsive operation
CNC machining centers • Modular system for perfect integration into
• Modular, switchable grippers the existing working environment

270°
swiveling

VacuMaster Comfort

JumboFlex JumboSprint Wall-mounted jib crane

Efficient Handling is Becoming More Important One-hand
operation
in Every Industry

Not all tasks can be automated. People are vital in many production, assembly and logistics pro-
cesses thanks to their intuitive and flexible way of working. A wide variety of handling tasks are 90° 180°
still and will continue to be performed by people. In the future, the key to success will be finding Swiveling turning
a low-cost, ergonomic solution that supports these jobs.
Whatever the activity – a Schmalz vacuum handling system offers the ideal ergonomic
solution for boosting productivity. The use of Schmalz vacuum lifters and crane systems 360°rotation JumboErgo VacuMaster Comfort VacuMaster Comfort Column-mounted jib crane Overhead crane system
optimizes the human/machine interface while also providing an ergonomic workplace. with turning unit
This increases employee motivation, and is an investment that will continue to pay off.
www.schmalz.com/jumbo www.schmalz.com/vacumaster www.schmalz.com/cranes

Your Direct Line to Schmalz

For system design questions Technical Consultation Local Sales Partners
Tel. +49 7443 2403-108 www.schmalz.com/salesnetwork
Fax +49 7443 2403-299
handling-systems@schmalz.de

You will find practical application Discover more about the world of For questions about the start
solutions and service videos at: vacuum handling at: of operations and maintenance:

www.schmalz.com/video www.schmalz.com/handling-systems www.schmalz.com/service
