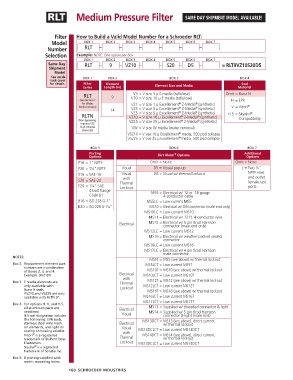

Page 162 - Schroeder - Hydraulic And Lube Filtration

RLT Medium Pressure Filter SAME DAY SHIPMENT MODEL AVAILABLE!

Filter How to Build a Valid Model Number for a Schroeder RLT:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Number RLT – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7
Same Day RLT – 9 – VZ10 – – S20 – D5 – = RLT9VZ10S20D5
Shipment
Model
See inside BOX 1 BOX 2 BOX 3 BOX 4
back cover
for details. Filter Element Element Size and Media Seal
Series Length (in) Material
V3 = V size 3 µ E media (cellulose)
RLT 9 V10 = V size 10 µ E media (cellulose) Omit = Buna N
(See Section 7 H = EPR
for Water VZ1 = V size 1 µ Excellement Z-Media (synthetic)
®
®
Service version) VZ3 = V size 3 µ Excellement Z-Media (synthetic) V = Viton ®
®
®
14 VZ5 = V size 5 µ Excellement Z-Media (synthetic)
®
®
®
RLTN VZ10 = V size 10 µ Excellement Z-Media (synthetic) H.5 = Skydrol
®
®
(Non-bypassing: VZ25 = V size 25 µ Excellement Z-Media (synthetic) Compatibility
®
®
requires V5Z
high collapse VW = V size W media (water removal)
elements)
V5Z10 = V size 10 µ Excellement media, 500 psid collapse
®
V5Z25 = V size 25 µ Excellement media, 500 psid collapse
®
BOX 5 BOX 6 BOX 7
Porting Dirt Alarm Options Additional
®
Options Options
P16 = 1" NPTF Omit = None Omit = None
P20 = 1 ⁄4" NPTF Visual D5 = Visual pop-up L = Two ⁄4"
1
1
S16 = SAE-16 Visual D8 = Visual w/ thermal lockout NPTF inlet
and outlet
with
S20 = SAE-20 Thermal female test
1
F20 = 1 ⁄4" SAE Lockout ports
4-bolt flange MS5 = Electrical w/ 12 in. 18 gauge
Code 61 4-conductor cable
B16 = ISO 228 G-1" MS5LC = Low current MS5
B20 = ISO 228 G-1 ⁄4" MS10 = Electrical w/ DIN connector (male end only)
1
MS10LC = Low current MS10
MS11 = Electrical w/ 12 ft. 4-conductor wire
Electrical MS12 = Electrical w/ 5 pin Brad Harrison
connector (male end only)
MS12LC = Low current MS12
MS16 = Electrical w/ weather-packed sealed
connector
MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison
male connector
NOTES:
MS5T = MS5 (see above) w/ thermal lockout
Box 2. Replacement element part MS5LCT = Low current MS5T
numbers are a combination
of Boxes 2, 3, and 4. MS10T = MS10 (see above) w/ thermal lockout
Example: 9VZ10V Electrical MS10LCT = Low current MS10T
with
Box 3. E media elements are Thermal MS12T = MS12 (see above) w/ thermal lockout
only available with Lockout MS12LCT = Low current MS12T
Buna N seals. MS16T = MS16 (see above) w/ thermal lockout
V5Z10 and V5Z25 are only
available with RLTN 9". MS16LCT = Low current MS16T
MS17LCT = Low current MS17T
Box 4. For options H, V, and H.5,
all aluminum parts are Electrical MS13 = Supplied w/ threaded connector & light
anodized. Visual MS14 = Supplied w/ 5 pin Brad Harrison
H.5 seal designation includes connector & light (male end)
the following: EPR seals, MS13DCT = MS13 (see above), direct current,
stainless steel wire mesh Electrical w/ thermal lockout
on elements, and light oil Visual
coating on housing exterior. with MS13DCLCT = Low current MS13DCT
®
Viton is a registered Thermal MS14DCT = MS14 (see above), direct current,
trade mark of DuPont Dow w/ thermal lockout
Elastomers. Lockout MS14DCLCT = Low current MS14DCT
®
Skydrol is a registered
trade mark of Solutia Inc.
Box 5. B porting supplied with
metric mounting holes.
160 SCHROEDER INDUSTRIES
