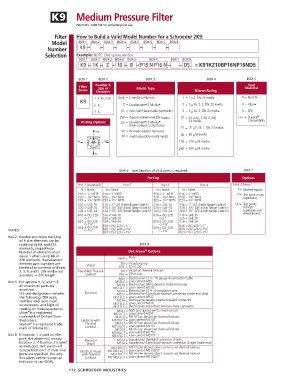

Page 174 - Schroeder - Hydraulic And Lube Filtration

K9 Medium Pressure Filter

Patent No. 7,604,738 for connecting end cap

Filter How to Build a Valid Model Number for a Schroeder 2K9:
Model BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
Number K9 – – – – – – –
Selection Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
K9 – 1K – Z – 10 – B – P16 N P16 N – – D5 = K91KZ10BP16NP16ND5

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Seal
Filter Number & Media Type Material
Size of
Series Elements Micron Rating
1 K,KK,27K Omit = E-media (cellulose) 1 = 1 µ Z, ZW, ZX media B = Buna N
K9
2 K Z = Excellement Z-Media ® 3 = 3 µ AS, E, Z, ZW, ZX media V = Viton ®
®
3 K AS = Anti-Stat Pleat media (synthetic) 5 = 5 µ AS, Z, ZW, ZX media H = EPR
®
ZW = Aqua-Excellement ® ZW media 10 = 10 µ AS, E, M, Z, ZW, H.5 = Skydrol
Porting Options ZX = Excellement Z-Media ® ZX media Compatibility
®
(high collapse centertube)
25 = 25 µ E, M, Z, ZW, ZX media
W = W media (water removal)
M = media (reusable metal mesh) 60 = 60 µ M media
150 = 150 µ M media
260 = 260 µ M media

BOX 6 Specification of all 4 ports is required BOX 7
Porting Options
Port 1 (standard) Port 2 Port 3 Port 4 Omit = None
N = None N = None N = None N = None X= Blocked bypass
P16 = 1" NPTF P16 = 1" NPTF P16 = 1" NPTF P16 = 1" NPTF U = Test point in cap
1
1
1
1
P20 = 1 ⁄4" NPTF P20 = 1 ⁄4" NPTF P20 = 1 ⁄4" NPTF P20 = 1 ⁄4" NPTF (upstream)
P24 = 1 ⁄2" NPTF P24 = 1 ⁄2" NPTF P24 = 1 ⁄2" NPTF P24 = 1 ⁄2" NPTF
1
1
1
1
S16 = SAE-16 F16 = 1" SAE 4-bolt flange Code 61 S16 = SAE-16 F16 = 1" SAE 4-bolt flange Code 61 UU= Test points
S20 = SAE-20 F20 = 1 ⁄4" SAE 4-bolt flange Code 61 S20 = SAE-20 F20 = 1 ⁄4" SAE 4-bolt flange Code 61 in block
1
1
S24 = SAE-24 F24 = 1 ⁄2" SAE 4-bolt flange Code 61 S24 = SAE-24 F24 = 1 ⁄2" SAE 4-bolt flange Code 61 (upstream and
1
1
B16 = ISO 228 S16 = SAE-16 B16 = ISO 228 S16 = SAE-16 downstream)
G-1" S20 = SAE-20 G-1" S20 = SAE-20
B20 = ISO 228 S24 = SAE-24 B20 = ISO 228 S24 = SAE-24
G-1 ⁄4" G-1 ⁄4"
1
1
B24 = ISO 228 B16 = ISO 228 G-1" B24 = ISO 228 B16 = ISO 228 G-1"
1
1
NOTES: G-1 ⁄2" B20 = ISO 228 G-1 ⁄4" G-1 ⁄2" B20 = ISO 228 G-1 ⁄4"
1
1
1
B24 = ISO 228 G-1 ⁄2" B24 = ISO 228 G-1 ⁄2"
1
Box 2. Double and triple stacking
of K-size elements can be
replaced by KK and 27K BOX 8
elements, respectively. ®
Number of elements must Dirt Alarm Options
equal 1 when using KK or None
27K elements. Replacement Omit =
element part numbers are Visual D5 = Visual pop-up
identical to contents of Boxes D5C = D5 in cap
2, 3, 4, and 5. ZW media not Visual with Thermal D8 = Visual w/ thermal lockout
available in 27K length. Lockout D8C = D8 in cap
MS5 = Electrical w/ 12 in. 18 gauge 4-conductor cable
Box 5. For options H, V, and H.5, MS5LC = Low current MS5
MS10 = Electrical w/ DIN connector (male end only)
all aluminum parts are MS10LC = Low current MS10
anodized. MS11 = Electrical w/ 12 ft. 4-conductor wire
H.5 seal designation includes Electrical MS12 = Electrical w/ 5 pin Brad Harrison connector (male end only)
the following: EPR seals, MS12LC = Low current MS12
stainless steel wire mesh MS16 = Electrical w/ weather-packed sealed connector
on elements, and light oil MS16LC = Low current MS16
MS17LC = Electrical w/ 4 pin Brad Harrison male connector
coating on housing exterior. MS5T = MS5 (see above) w/ thermal lockout
®
Viton is a registered MS5LCT = Low current MS5T
trade mark of DuPont Dow MS10T = MS10 (see above) w/ thermal lockout
Elastomers. Electrical with MS10LCT = Low current MS10T
MS12T = MS12 (see above) w/ thermal lockout
Skydrol is a registered trade- Thermal MS12LCT = Low current MS12T
®
mark of Solutia Inc. Lockout MS16T = MS16 (see above) w/ thermal lockout
MS16LCT = Low current MS16T
Box 8. If location 1 is used as inlet MS17LCT = Low current MS17T
port, dirt alarm will occupy Electrical MS13 = Supplied w/ threaded connector & light
location 2. If location 2 is used Visual MS14 = Supplied w/ 5 pin Brad Harrison connector & light (male end)
as inlet port, dirt alarm will MS13DCT = MS13 (see above), direct current, w/ thermal lockout
occupy location 1. If dual inlet Electrical Visual MS13DCLCT = Low current MS13DCT
ports are specified, the only with Thermal MS14DCT = MS14 (see above), direct current, w/ thermal lockout
dirt alarm option is pop-up Lockout MS14DCLCT = Low current MS14DCT
indicator in cap (D5C).
172 SCHROEDER INDUSTRIES
