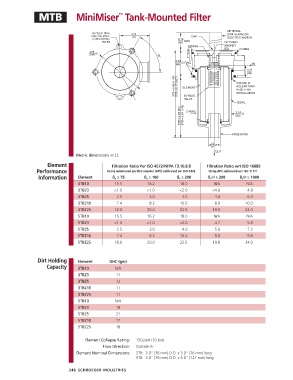

MTB MiniMiser Tank-Mounted Filter
™

Metric di men sions in ( ).
Element Filtration Ratio Per ISO 4572/NFPA T3.10.8.8 Filtration Ratio wrt ISO 16889
Performance Using automated particle counter (APC) calibrated per ISO 4402 Using APC calibrated per ISO 11171
Information Element ß x ≥ 75 ß x ≥ 100 ß x ≥ 200 ß x ≥ 200 ß x ≥ 1000
(c)
(c)
3TB10 15.5 16.2 18.0 N/A N/A
3TBZ3 <1.0 <1.0 <2.0 <4.0 4.8
3TBZ5 2.5 3.0 4.0 4.8 6.3
3TBZ10 7.4 8.2 10.0 8.0 10.0
3TBZ25 18.0 20.0 22.5 19.0 24.0
5TB10 15.5 16.2 18.0 N/A N/A
5TBZ3 <1.0 <1.0 <2.0 4.7 5.8
5TBZ5 2.5 3.0 4.0 5.6 7.2
5TBZ10 7.4 8.2 10.0 8.0 9.8
5TBZ25 18.0 20.0 22.5 19.0 24.0

Dirt Holding Element DHC (gm)
Capacity 3TB10 N/A
3TBZ3 11
3TBZ5 12
3TBZ10 11
3TBZ25 11
5TB10 N/A
5TBZ3 18
5TBZ5 21
5TBZ10 17
5TBZ25 18

Element Collapse Rating: 150 psid (10 bar)
Flow Direction: Outside In
Element Nominal Dimensions: 3TB: 3.0" (76 mm) O.D. x 3.0" (76 mm) long
5TB: 3.0" (76 mm) O.D. x 5.0" (127 mm) long
